PIUSI

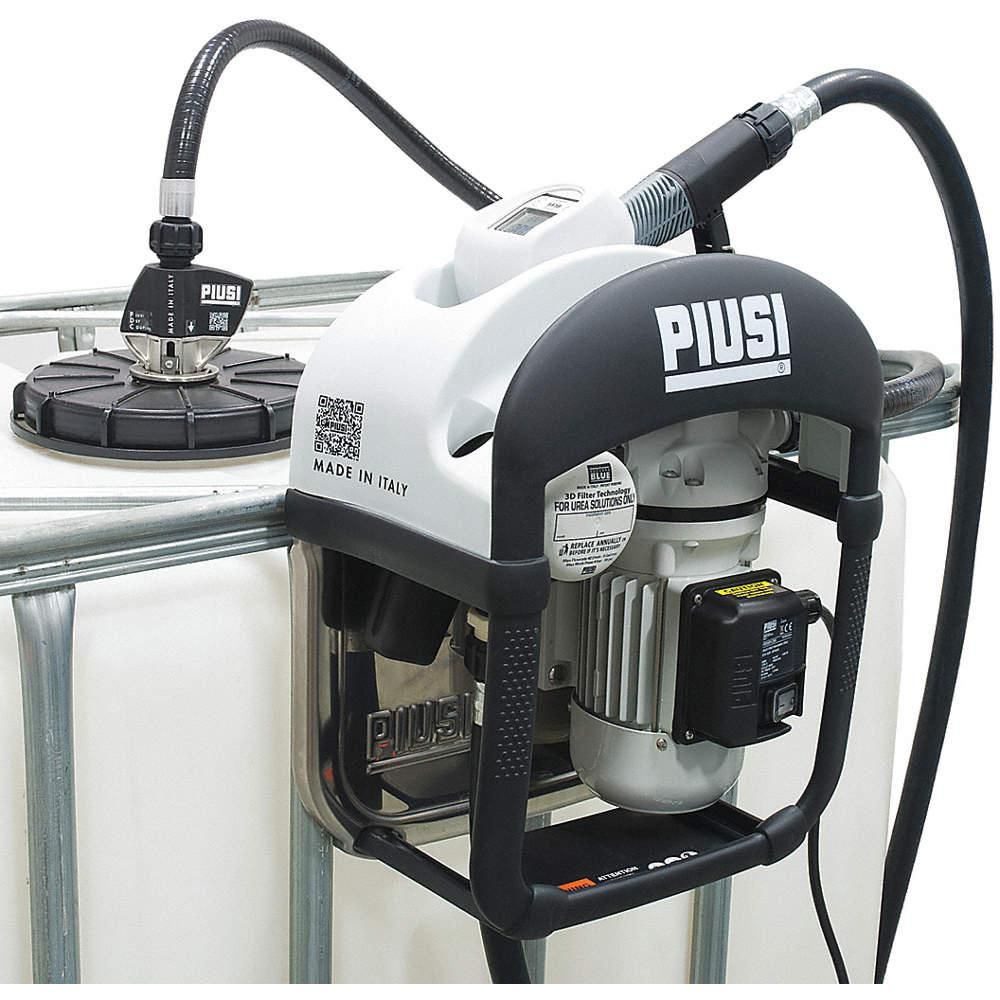

Electric Operated Drum Pump, Metered Dispensing with Automatic Shut-Off, 120V AC, 2/3 hp Motor HP

Hover over image to magnify
Def Transfer Pump,43/64 Hp,
Def Transfer Pump,43/64 Hp,

#926726-5 | Pkg Qty: 1

$1,236.64 pkg | $1,236.64 ea

Drop Ship Item

Shipping to 60045

Required Items

Items below are required. They are not included and need to be ordered separately.
Container Valve,Rsv,5" L,3"
Pkg Qty: 1
$104.98 pkg
Container Valve,Rsv,5" L,3"
Pkg Qty: 1
$104.98 pkg
Container Valve,Rsv,5" L,3"
Pkg Qty: 1
$104.98 pkg
Ibc Cover,2" Buttress,8" Dia.
Pkg Qty: 1
$59.50 pkg
Ibc Cover,2" Buttress,8" Dia.
Pkg Qty: 1
$59.50 pkg
Ibc Cover,2" Buttress,8" Dia.
Pkg Qty: 1
$59.50 pkg
Down Tube,49" L,1-3/8" Dia.
Pkg Qty: 1
$14.52 pkg
Down Tube,49" L,1-3/8" Dia.
Pkg Qty: 1
$14.52 pkg
Down Tube,49" L,1-3/8" Dia.
Pkg Qty: 1
$14.52 pkg

Technical Specifications

Key Specifications
Adapter Material
Stainless Steel
Metered
Yes
Adapter Type
PDC
Mfr. Part Number
F00101A0H
Agency Compliance
ISO 22241
Mfr. Warranty Length
2 yr. Manufacturing Defects
Brand
PIUSI
Motor Enclosure
MEC
Discharge Tube Length
25 ft.
Motor RPM
1,400 RPM
Duty
Intermittent
Motor Type
Permanent T Capcitor
Duty Cycle
Intermittent
Nozzle Material
Nylon, Stainless Steel, Viton
Food Grade
No
Outlet Size
1"
Full Load Amps
1.95
Pack Quantity
1
GPM
9
Phase
1
Horsepower
43/64
Power Source
Electric
Hose Length
25 ft.
Seal Material
NBR
Hose Material
EPDM
Self-Priming
Yes
Housing Material
Cast Iron
Series
NO
Hz
60
Shipping Weight
33 lb.
Inlet Size
1" FBSP
Spout Material
Stainless Steel
Item
Electric Operated Drum Pump
Suction Tube Type
Flexible Hose
Maximum GPM for Water
9
Thermal Protection
Yes
Maximum Head
13 ft.
Variable Speed
No
Maximum Liquid Temperature
104°F
Voltage
120 VAC
Maximum Pressure
23 psi
Wetted Materials
Delrin, EPDM Nylon, NBR, Stainless steel
Maximum Viscosity
5 cP
General
Adapter Connection Type
Buttress
Includes Discharge Hose
Yes
Bung Connection Dia.
2 in
Includes Nozzle
Yes
Compatible Chemicals
Antifreeze (Coolant), DEF
Includes Spout
Yes
Diesel Exhaust Fluid Compatible
Yes
Includes Suction Tube
Yes
Discharge Connection Type
Hose Barb
Max. Flow Rate
9 gpm
Discharge Tube Outlet ID
3/4 in
Max. Fluid Temp.
104 Degrees F
Discharge Tube Outlet OD
1 1/16 in
Max. Head - Pumps
45 ft
Explosion Proof
No
Max. Head Pressure
22 psi
Features
COMPATIBLE WITH DEF
Max. Outlet Pressure
22 psi
For Container Size
275 gal, 330 gal
Min. Fluid Temp.
12 Degrees F
For Container Type
Tote
Noise Level
75 db
For Media Type
Antifreeze, DEF
Nominal Voltage
110V AC
For Use With
50/50 Antifreeze, Diesel Exhaust Fluid
Nozzle Operation
Automatic
Frequency (Hz)
60
Number of Phases
1
Hose Cover Material
EPDM
Pump Connection ID
1 in
Hose Inside Dia.
3/4 in
Pump Connection OD
1 in
Hose Outside Dia.
1 1/16 in
Pump Connection Type
Hose Barb
Hose Tube Material
EPDM
Pump Package Type
Metered Dispensing with Automatic Shut-Off
Housing Material - Pumps
Nylon
Rated Voltage
120V AC
Includes
ADAPTER, DELIVERY HOSE, DISCHARGE HOSE, METER, NOZZLE , PUMP
Runs Dry
No
Includes Bung Adapter
Yes
Spout Discharge Size
3/5 in

Product Description

Diesel exhaust fluid (DEF) stationary electric drum pumps are used specifically with DEF to maintain purity when filling the reservoir of a diesel engine's Selective Catalytic Reduction (SCR) system. These pumps are certified to ISO standards that regulate the handling, transportation, and storage of DEF. They are used for dispensing and transferring moderate to large volumes of DEF when servicing late model trucks and SUVs as well as SCR-based stationary industrial systems that operate on diesel fuel.
