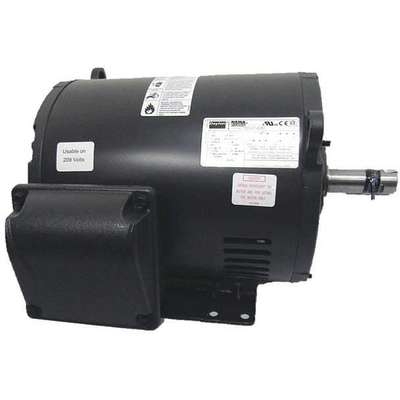

Dayton General Purpose Motor, 15 HP, 3-Phase, Nameplate RPM 3,530, Voltage 230/460V AC, 213/5T Frame

Hover over image to magnify
Gp Motor,Odp,15 Hp,3530 Rpm,1-
Gp Motor,Odp,15 Hp,3530 Rpm,1-

#926724-7 | Pkg Qty: 1

$1,313.04 pkg | $1,313.04 ea
This item requires special shipping, additional charges may apply.
Item Number 926724-7
Scanner Description Gp Motor,Odp,15 Hp,3530 Rpm,1-
Inventory Status Drop Ship Item
Weight 135 lb
Brand DAYTON

Technical Specifications

Bearings
Ball
Manufacturers Warranty Length
1 yr.
Brand
DAYTON
Mfr. Part Number
36VF44
Duty
Continuous
Motor Design
3-Phase
Duty Cycle
Continuous
Mounting
Base
Footnotes
21554
Nameplate RPM
3530
Frame
213/5T
Number of Speeds
1
Full Load Amps
34.0/17.0
Overall Length
18-15/16 in.
Green Certification or Other Recognition
NE mA Premium« Rated
Pack Quantity
1
Green Environmental
Product Contributes To Reducing Energy Consumption
Phase
Three
Hz
60
Rotation
CW/CCW
Includes
Conduit Box
Service Factor
1.15
Insulation Class
F
Shaft Length
3-3/8 in.
Item
General Purpose Motor
Standards
CE, CSA, UL
Length Less Shaft
15-9/16 in.
Voltage
230/460 VAC

Product Description

NEMA 210 frame three-phase general purpose AC motors have a standard 1-3/8" diameter, 3-3/8" length shaft whose center is 5-1/4" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 213TCV. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted, and “V” indicates that the motor can be vertically mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).

Item Barcode
9267247
  Name Item Description
Grainger Dropship Grainger Dropship 36VF44 GP Motor,ODP, 15 HP,3530
UNSPSC CODES UNSPSC CODES 26101115
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 GP Motor,ODP, 15 HP,3530
