PARKER

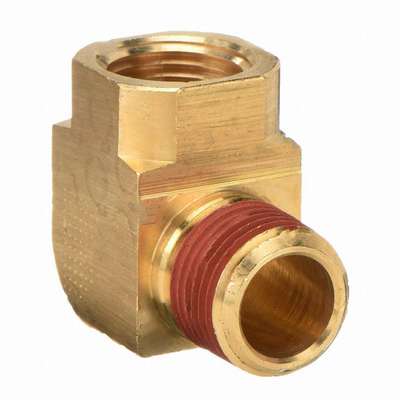

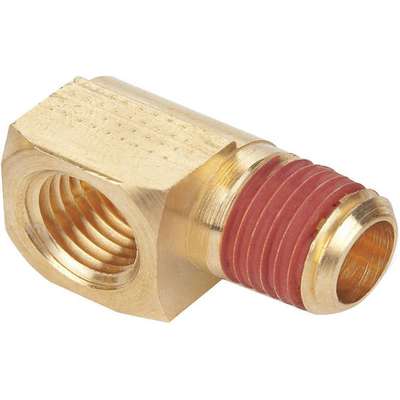

90° Extruded Street Elbow: Brass, 1/8 in x 1/8 in Fitting Pipe Size, Female NPT x Male NPT
Hover over image to magnify
#926696-3Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Technical Specifications
Key Specifications
Angle
90 deg.
Maximum Pressure
1000 psi
Body Material
Brass
Mfr. Part Number
VS2202P-2-2
Brand
PARKER
Package Quantity
1
Connection Type
FNPT x MNPT
Pipe Size
1/8 in.
Item
Extruded Street Elbow
Shipping Weight
.01 lb.
Length
5/8 in.
Temperature Range (Deg. F)
-65 to 250 deg. F
General
Class/Pressure
1,000 psi
Includes Pre-Applied Thread Sealant
Yes
Fitting Pipe Size
1/8 in x 1/8 in
Includes Seal
No
Fitting Side A Gender
Female
Low Lead Compliance Level
Not Compliant
Fitting Side A Nominal Pipe Size
1/8 in
Material Grade
C37700
Fitting Side A Type
NPT
Max. Steam Pressure
1,000 psi
Fitting Side B Gender
Male
Pressure Level
High Pressure (1000-3000 psi)
Fitting Side B Nominal Pipe Size
1/8 in
Standards
SAE J530 and J531
Fitting Side B Type
NPT
Thread Sealant Type
Vibra-Seal(R)
For Use With
Copper, Brass, Iron Pipe
Threading
NPT
Includes
Thread Sealant
Product Description
Featuring high-impact strength and resistance to mechanical shock and vibration, this PARKER extruded street elbow can be used with brass, copper, and iron tubing. Fitting is for use in aggressive and general industrial environments and is compatible with many fluids. Male threads include Loctite® Vibra-Seal® thread sealant.
