PANDUIT

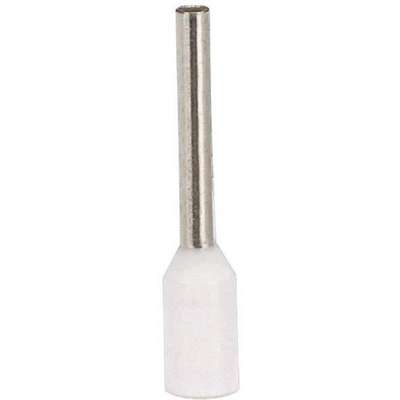

Panduit Ferrule: 20 AWG, White, 17/32 in Insertion L, 0.61 in Overall L, 500 PK

Hover over image to magnify
Ferrule,20 Awg,PP,17/32in.,
Ferrule,20 Awg,PP,17/32in.,

#926689-9 | Pkg Qty: 500

$108.15 pkg | $0.22 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
PANDUIT
Item
Ferrule
Color Code
White
Maximum Temperature
221 deg. F
Color Family
White
Mfr. Part Number
FSD75-10-D
Connection Material
Tinned
Number of Wires
0
Insertion Length
17/32 in.
Overall Length
0.61 in.
Insulation Color
White
Shipping Weight
.1 lb.
Insulation Type
Polypropylene
Wire Range
20 AWG
General
Barrel Diameter
0.09 in
Ferrule Material
Copper
Barrel Finish
Tin Plated
For Wire Size
22 AWG
Barrel Material
Copper
Insulation Coverage
Partially Insulated
Compatible Manufacturer Model Number
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Max. Temp.
221°F
Compatible Part Number
376U38, 376U39, 377M39, 38YU65, 38YU66, 38YU67
Maximum Conductors
1
Compatible with Product Type
Terminal Block
Standards
DIN, UL
Compatible with Series
CT
Strip Length
17/32 in
Contact Finish
Tin
Termination Style
Crimp
Features
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Wire Size Range
22 AWG – 20 AWG

Product Description

Designed with seamless barrel to contain loose wire strands for superior terminations. This ferrule eases insertion of wire into terminal block, and is suitable for limited-space panel applications.
