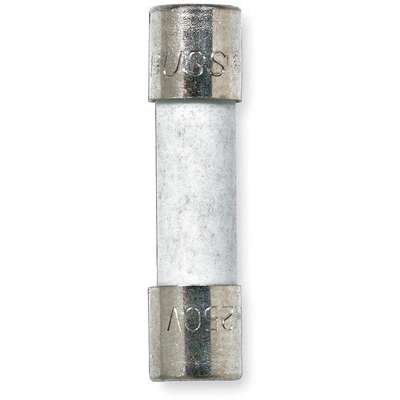

3-15/100A Time Delay Ceramic Fuse with 250VAC Voltage Rating; S505 Series

Hover over image to magnify
Fuse,3.15A,S505,250VAC,PK5
Fuse,3.15A,S505,250VAC,PK5

#926686-2 | Pkg Qty: 5

$25.63 pkg | $5.13 ea
Item Number 926686-2
Scanner Description Fuse,3.15A,S505,250VAC,PK5
Inventory Status Drop Ship Item
Weight 0.02 lb
Brand EATON BUSSMANN

Technical Specifications

AC Voltage Rating
250 VAC
In Line Fuseholder
E
Amperage
3-15/100 A
Indicating
No
Body Material
Ceramic
Indicating / Nonindicating
Nonindicating
Body Style
Cylindrical
Interrupt Rating
1.5kA at 250 VAC
Brand
EATON BUSSMANN
Item
Fuse
DC Voltage Rating
Not Rated
Length
20 mm
Diameter
5.2 mm
Mfr. Part Number
S505-3.15-R
Element
Single
Pack Quantity
5
Functionally Equal To
Mersen/Ferraz Shawmut GSF, Littelfuse 215
Rejection / Nonrejection
Nonrejection
Fuse Amps
3-15/100A
Series
S505
Fuse Holder Code
E
Speed
Time Delay
Fuse Interrupt Rating
1.5 kA at 250 VAC
Standards
UL, CSA, VDE, SEMKO, CCC, IMQ, BSI
Fuse Speed
Time Delay
Type
Electronic
Fuse Voltage Rating
250 VAC
Voltage Rating
250 VAC

Product Description

Time-delay ceramic fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups. Also called slow-blow ceramic fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits.

Ceramic fuses protect against overcurrent in high-current circuits found in AC or DC electronics, appliances, and electrical equipment. They have higher interrupting ratings and withstand higher temperatures than glass fuses. These small, cylindrical fuses have an opaque body that shows no outward signs when the fuse has blown, so they're typically tested with a multimeter or ohmmeter to check their function.
