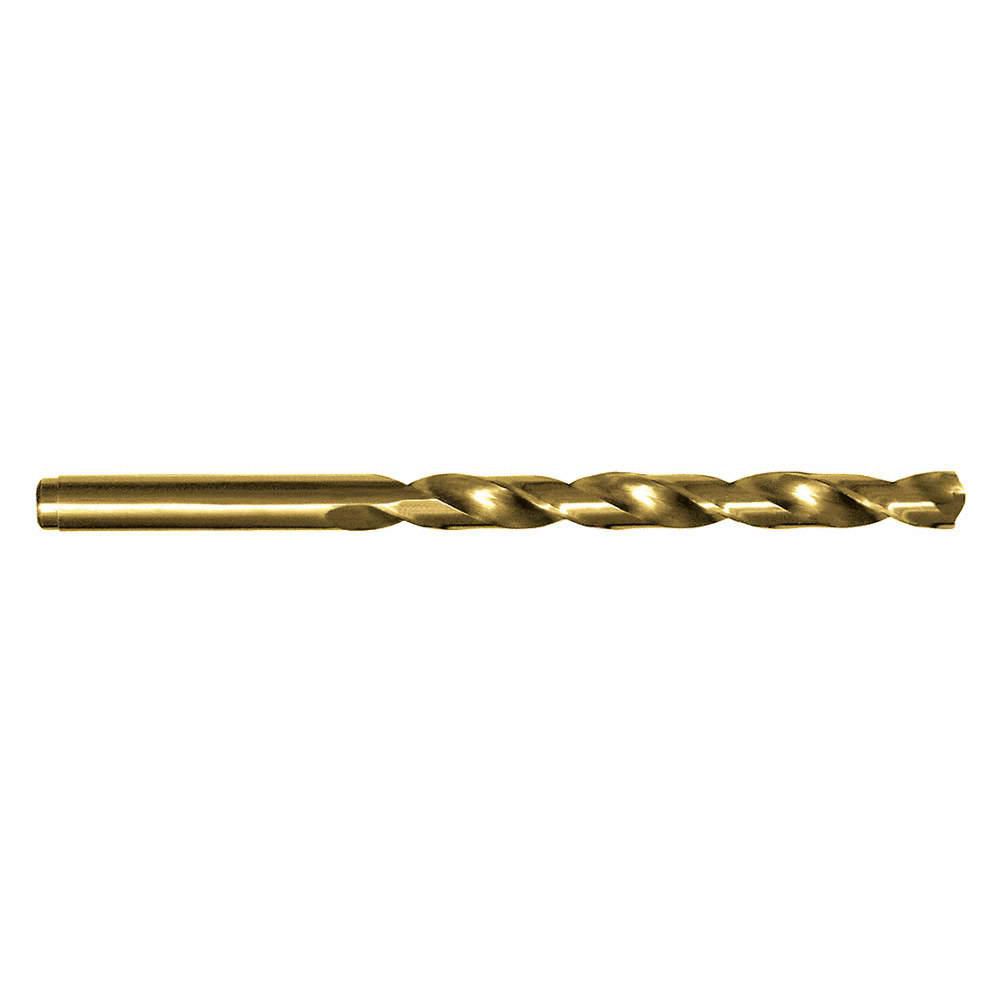

Cle-Line 1/4", Cobalt Steel, Jobber Drill Bit, 4" Overall Length, Straw/Bronze Drill Bit Finish
Hover over image to magnify
#926671-4 | Pkg Qty: 1
$6.15 pkg | $6.15 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
Cobalt
Cutting Direction
Right
List Number
1802
Decimal Equivalent
1/4
Maximum Drilling Depth
1 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C23357
Drill Bit Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Finish
Straw/Bronze
Overall Length
4 in.
Drill Bit Material
Cobalt Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
1/4 in.
Series
1802
Drill Point Length
0.0518 in.
Shank Diameter
1/4 in.
Finish
Straw/Bronze
Shank Length
1-1/4 in.
Flute Length
2-3/4 in.
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
.04 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
21 to 34
General
Application
For Alloy, Stainless Steel, Titanium, Manganese Steel, Armor Plate, Inconel
Material - Machining
Cobalt
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
H, K, N, P, S
Drill Bit Point Type
Split Point
Shank Dia.
1/4 in
Drill Diameter Tolerance
+0.0000 in /-0.0007 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME
Finish - Machining
Straw/Bronze
Product Description
These drill bits have a straw/bronze finish that improves their wear resistance. They also have spiral flutes that evacuate chips as the bits drill into a workpiece.
