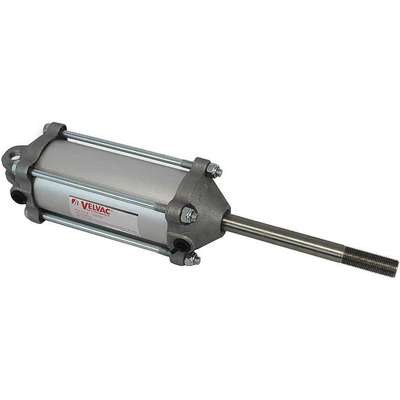

2-1/2" Air Cylinder Bore Dia. with 4" Stroke Aluminum , Clevis Mounted Air Cylinder

Item Number 926666-1
Scanner Description Air Cylinder,Air,2-1/2 In.
Weight 3.4 lb
Brand VELVAC
Pkg Qty: 1

Add to List

Technical Specifications

Brand VELVAC   Pack Quantity 1

Product Description

  • Shipping Weight 3.4 lbs.
Country of Origin China Country of Origin is subject to change.


  • Item Air Cylinder
  • Air Cylinder Product Group Air Cylinder
  • Cylinder Action Single Acting
  • Air Cylinder Bore Dia. 2-1/2"
  • Stroke 4"
  • Air Cylinder Mount Clevis
  • Body Material Aluminum
  • Port Size 1/4"-18 NPTF
  • Single Acting/Double Acting Single Acting
  • Temp. Range -60F
  • Cylinder Type Spring Return
  • Overall Length 10.62" Retracted
  • Bore Dia. 2-1/2"
  • Max. Load 361 lb.
  • Mount Clevis
  • Piston Material Double Acting Buna-N Emralon Coated
  • Finish Brushed
  • End Cap Material Aluminum
  • Piston Rod Material Metal
  • Magnetic Piston Yes
  • Tie Rod Material Metal
  • Tube Material Aluminum
  • Rod Dia. 5/8"
  • Rod Thread Size 5/8"-18 UNF
  • Rod Thread Length 1-3/4"
  • Pivot Hole Dia. 1/2"
  • Spring Retraction Force 452 lbs
  • Features Spring Return
  • Max. Pressure 100 psi

Item Barcode

9266661
  Name Item Description
Grainger Dropship Grainger Dropship 21DH72
UNSPSC CODES UNSPSC CODES 27131701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Air Cylinder, Air,2-1/2 In.
