BAILEIGH INDUSTRIAL

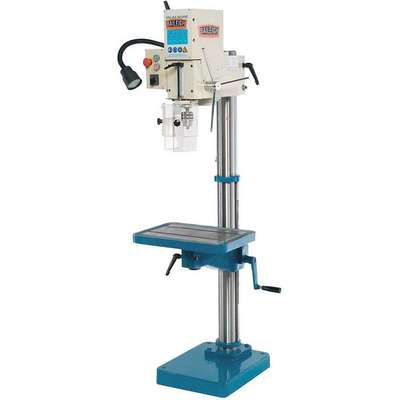

Baileigh Industrial 1-1/2 Motor HP Floor Drill Press, Geared Head Drive Type, 10" Swing, 110 Voltage
Hover over image to magnify
#926650 | Pkg Qty: 1
$5,025.68 pkg | $5,025.68 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
Metalworking
Package Quantity
1
Brand
BAILEIGH INDUSTRIAL
Phase
Single-Phase
Drive Type
Geared Head
Shipping Weight
522 lb.
Horsepower
1-1/2 HP
Speed Control
Variable
Item
Floor Drill Press
Swing
10-3/8 in.
Mfr. Part Number
DP-1000G
Voltage
110
Overall Depth
66 in.
General
Chuck Style
Machine Taper
Nominal Voltage
115V AC
Column Diameter
4 in
Power Down Feed Included
No
Coolant System
Yes
Radial Arm
No
Current
14 A
Speed Adjustment
Gear Head
Drill Press Application
Boring, Countersinking, Drilling, Milling, Reaming, Tapping
Speed Range
125/420/535/1,740 RPM
Drill Press Type
Floor Stand
Spindle Speed Range
125 RPM - 1,740 RPM
Drill Spindle Travel
5 in - 6 in
Spindle Travel
5 5/16 in
Drilling Capacity in Steel
1 in
Spindle-to-Column Distance
10 in
Guard Included
Yes
Table Length
19 3/4 in
Includes
Spindle Guard
Table Slot
Yes
Maximum Overall Height
29 in
Table Width
13 3/4 in
Maximum Spindle Speed
1,740 RPM
Tapping Capacity in Steel
5/8 in
Minimum Spindle Speed
125 RPM
Tapping Compatible
Yes
Product Description
Equipped to run at 4 different speeds, the gear-driven drill press is as versatile as it is tough. For an economical price, you can add this drill—built to Baileigh’s exacting quality standards—to your shop.
- 1.5 hp motor requires 110 volts of power and will run in any fabrication or machine shop.
- Maximum capacity of up to 1” mild steel.
- Transmission offers multiple speeds (125, 420, 535, and 1740 rpm) for drilling and tapping an array of different materials.
- Sturdy 4" diameter column reduces flexing to ensure accurate results.
- You can easily adjust the gear head up or down on the column.
- Comes standard with a heavy cast iron base and adjustable table.
- Includes a protective guard around the spindle for your safety.
- Bright halogen work light bends to provide visibility where you need it.
