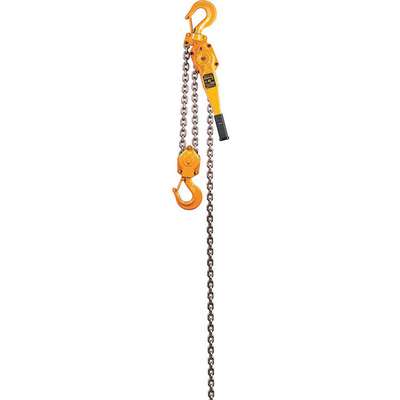

Lever Chain Hoist, 12,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-31/32" Hook Opening

Lever Chain Hoist, 12,000 lb. Load Capacity, 10 ft. Hoist Lift, 1-31/32" Hook Opening
Lever Chain Hoist,10 Ft. Lift,
PI_Asset_973529
PI_Asset_980246

#926628-1 | Pkg Qty: 1

$1,881.80 pkg | $1,881.80 ea
Item Number 926628-1
Scanner Description Lever Chain Hoist,10 Ft. Lift,
Inventory Status Drop Ship Item
Weight 76.25 lb
Brand HARRINGTON

Technical Specifications

Brake
Weston Style Load Brake
Item
Lever Chain Hoist
Brand
HARRINGTON
Lever Length
16-5/16 in.
Chain
Nickel Plated
Load Capacity
12000 lb.
Chain Length
22 ft.
Mfr. Part Number
LB060-10
Finish
Powder Coated
Mfr. Warranty Length
1 yr.
Hoist Lift
10 ft.
Min. Between Hooks
21-5/16 in.
Hoist Mount
Hook Mounted - No Trolley
Pack Quantity
1
Hoist Overload Protection
No
Pull to Lift Rated Load
72 lb.
Hook Opening
1-31/32 in.
Reeving
2
Includes
Safety Latch Hooks
Standards
ANSI/ASME B30.21

Product Description

Made with all-steel construction, this spring-loaded, free-wheeling device allows adjustment and safeguards against accidental free wheeling. Features include a Weston-style load brake, dual-stage reduction gearing, and a hardened alloy steel, nickel-plated grade 100 load chain. The top and bottom hooks rotate 360° and open slowly without fracturing under overloads.

Item Barcode
9266281
  Name Item Description
Grainger Dropship Grainger Dropship 23XR64 Lever Chain Hoist,10 ft.
UNSPSC CODES UNSPSC CODES 24101602
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Lever Chain Hoist,10 ft.
