SPEEDAIRE

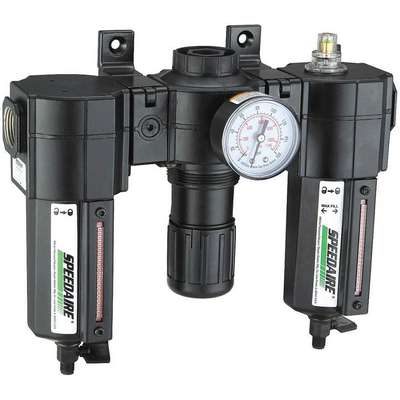

1/2" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range

Hover over image to magnify
Frl,1/2 In. NPT,192 Cfm,250 PSI
Frl,1/2 In. NPT,192 Cfm,250 PSI

#926617 | Pkg Qty: 1

$292.81 pkg | $292.81 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SPEEDAIRE
Package Quantity
1
Item
Filter/Regulator/Lubricator
Shipping Weight
7.21 lb.
Mfr. Part Number
7D744
General
Adjustment Range
5 to 150 psi
For Substance Type
Air
Adjustment Range - Air Treatment
5 to 150 psi
Includes
Mounting Brackets, Pressure Gauge
Air Inlet Type
NPT
Lubricator Bowl Capacity
7 oz
Air Outlet Size
1/2 in
Lubricator Bowl Material
Metal
Air Outlet Type
NPT
Lubricator Type
Mist
Bowl Material - Air Treatment
Metal with Sight Glass
Lubricator Type Included
Mist
Bowl Size - Air Treatment
7.0 oz
Max. Flow - Air Treatment
192 cfm
Connection Size - Air Treatment
1/2 in NPT
Max. Flow Range - Air Treatment
151 to 200 cfm
Filter Bowl Capacity
7 oz
Max. Incoming Pressure - Air Treatment
250 psi
Filter Bowl Material
Metal
Maximum Regulated Pressure
150 psi
Filter Rating - Air Treatment
5 micron
Minimum Regulated Pressure
5 psi
For Fluid Type
Air

Product Description

This 3-pc. unit combines filter, regulator, and Mist lubricator. Modular connector allows easy removal and swap out. Some assembly required. For filter, the CFM is based on 100 psig inlet and 5 psig pressure drop. For regulator, the CFM flow is measured with 100 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 100 psig inlet and 5 psig pressure drop.
