VERSA-MIST

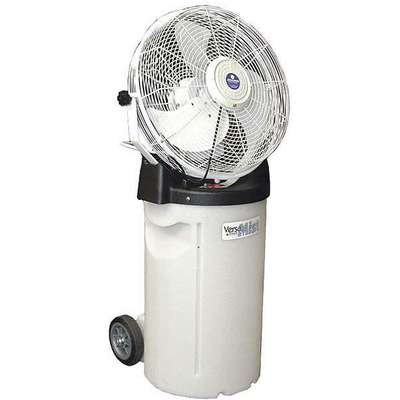

Versa-Mist 18" Industrial Misting Fan, Mobile, Pedestal, 115 VAC

Hover over image to magnify
Misting Air Circ,18 In,2200
Misting Air Circ,18 In,2200

#926605-8 | Pkg Qty: 1

$1,134.25 pkg | $1,134.25 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
Adj 53 to 72 in.
Motor Insulation
Class A
Air Flow
1,400/1,800/2,200 cfm
Motor RPM
1000/1400/1570
Assembled/Unassembled
No
Motor Type
Permanent Split Capacitor
Bearing Type
Sealed Ball
Mounting Location
Pedestal
Blade Diameter
18 in.
NEMA Plug Configuration
5-15P
Blade Material
Steel
Number of Blades
3
Brand
VERSA-MIST
Number of Conductors
3
Cord Length
25 ft.
Oscillating
No
Drive Type
Direct
Outside Diameter
20 in.
Guard Material
Steel
Package Quantity
1
Height Range
Adj 53 - 72 in.
Phase
1
Hz
60/52 dBA
Shaft Diameter
1/2 in.
Item
Industrial Fan
Shipping Weight
85 lb.
Mfr. Part Number
PVM18C
Thermal Protection
Automatic
Mobile/Stationary
Mobile
Voltage
115V AC
Motor Enclosure
Totally Enclosed Air Over
Watts
130
Motor HP
1/10
Width
24 in.
General
Air Velocity @ 20 Ft.
190/270/310 fpm
Fan Mounting Location
Pedestal
Application
Spot Cooling and People Cooling
Includes
(1) Extra Nozzle, (2) Plugs, 14 gal Tank, 7 hr Run Time, 8 in Rubber Casters, High Pressure Water Pump, Power Cut Off Tip Switch
Assembly Required
Yes
Max. Ambient Temp.
107 Degrees F
Environmental Applications
Industrial
Standards
UL507 Motor and OSHA Guard
Fan Cord Length
25 ft
Wheeled Base
Mobile
Fan Housing Material
Steel
Wire Guard Finish
White Powder Coated

Product Description

Industrial pedestal misting fans feature a misting hub that connects to a water source for adding moisture to the air for rapid cooling. They're used to supply a cooling mist that helps people avoid heat stress at amusement parks and other hot locations where water won't cause a slipping hazard or damage surrounding areas or equipment. These air circulators have a totally enclosed motor to keep out water and debris.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
