Pressure Gauge, 0 to 400 kPa, 0 to 60 PSI Range, 1/4", MNPT, +/-3-2-3% Gauge Accuracy

Hover over image to magnify

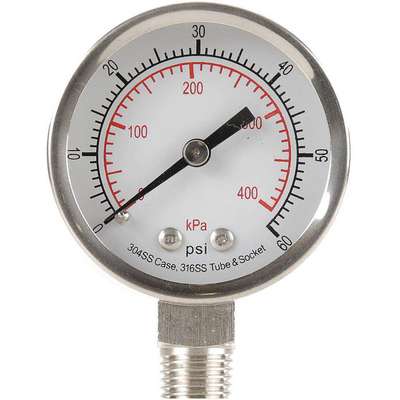

Pressure Gauge,Test,2 In
Pressure Gauge,Test,2 In

#926570-1 | Pkg Qty: 1

$30.38 pkg | $30.38 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bezel Material
Crimped Stainless Steel
Gauge Primary Range Smallest Graduation
1
Brand
APPROVED SUPPLIER
Gauge Primary Range Units
psi
Calibration Certificate Included
No
Gauge Primary Range Values
0 to 60
Gauge Accuracy
±3-2-3%
Gauge Sensor Material
316 Stainless Steel
Gauge Application
Test and Measurement
Gauge Socket Material
316 Stainless Steel
Gauge Case Color
Stainless Steel
Item
Pressure Gauge
Gauge Case Material
304 Stainless Steel
Liquid Filled
No
Gauge Connection Location
Bottom
Mfr. Part Number
4FMK6
Gauge Connection Size
1/4 in.
Operating Temperature Range
-40 deg. F to 150 deg. F
Gauge Connection Type
MNPT
Package Quantity
1
Gauge Lens Material
Acrylic
Pressure/Vacuum Gauge Type
Pressure Gauge
Gauge Nominal Dial Size
2 in.
Shipping Weight
.21 lb.
Gauge Panel Mountable
No
General
Accuracy Scale
Mid-Scale
Pressure Range Type
Pressure
Blowout Safety Back
No
Pressure and Vacuum Gauge Type
Pressure Gauge
Case Material - Gauge
Stainless Steel
Primary Graduations
1
Cleaned for Oxygen Service
No
Primary Pressure Range
0 to 60
Dry Dampening Feature
None
Primary Scale Minor Graduations
1, 2
Field Fillable
No
Primary Scale Units
psi
Freeze Resistant Movement
No
Process Connection
1/4 in NPT Male
Gauge Case Liquid
None
Process Connection Gender
Male
Gauge Wetted Parts
Stainless Steel
Process Connection Location
Bottom
Includes Calibration Certificate
No
Process Connection Size
1/4 in
Includes Mounting Hardware
No
Process Connection Type
NPT
Includes Vent Plug
No
Removable Bezel
No
Lens Material - Gauge
Plastic
Scale Type
Dual
Liquid-Filled Case
No
Secondary Pressure Range
0 to 400
Nominal Dial Size
2 in
Secondary Range
0 to 400 kPa
Panel-Mountable
No
Secondary Scale Units
kPa
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Sensor Material
316 Stainless Steel

Product Description

Pressure Gauge, Test, 2 in, Basic Gauge Case Material Stainless Steel, Basic Gauge Wetted Parts Stainless Steel, 1/4 in, MNPT, Gauge Connection Location Bottom, 0 to 60, psi, Gauge Secondary Range Units kPa, Gauge Secondary Range Values 0 to 400, +/-3-2-3 Percent, Gauge Panel Mountable No, Liquid Filled No, Gauge Primary Range Smallest Graduation 1, Gauge Case Material 304 Stainless Steel, Gauge Case Color Stainless Steel, Calibration Certificate Included No
