PIC GAUGES

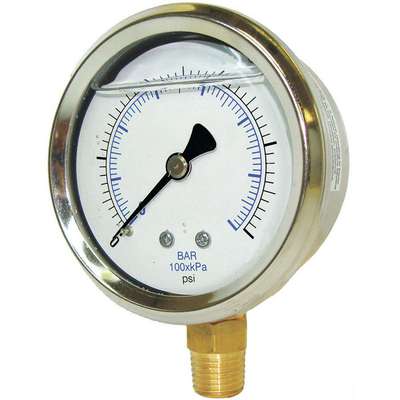

Compound Gauge, 30" Hg Vac to 30 PSI Range, 1/4" MNPT, +/-2-1-2% Gauge Accuracy

Hover over image to magnify
Pressure Gauge -30 To 30 PSI
PI_Asset_1764725
PI_Asset_1764726
Pressure Gauge -30 To 30 PSI
PI_Asset_1764725
PI_Asset_1764726

#926564-8 | Pkg Qty: 1

$21.73 pkg | $21.73 ea
Pressure Range : 30 to 0 to 30

Technical Specifications

Key Specifications
Bezel Material
Stainless Steel
Gauge Sensor Material
Copper Alloy
Brand
PIC GAUGES
Gauge Socket Material
Copper Alloy
Calibration Certificate Included
No
Hazardous Location Rating
Not Rated
Gauge Accuracy
±2-1-2%
Item
Industrial Compound Gauge
Gauge Application
General Purpose
Liquid Filled
Yes
Gauge Case Color
Silver
Mfr. Part Number
PRO-201L-254CC
Gauge Case Material
Stainless Steel
Mfr. Warranty Length
1 yr.
Gauge Connection Location
Bottom
Mounting Type
Stem-Mount
Gauge Connection Size
1/4 in.
Non-Sparking
No
Gauge Connection Type
MNPT
Operating Temperature Range
-30 deg. F to 180 deg. F
Gauge Filled With
Glycerin
Pack Quantity
1
Gauge Lens Material
Polycarbonate
Pressure Range
30 to 0 to 30
Gauge Nominal Dial Size
2-1/2 in.
Series
201L
Gauge Panel Mountable
No
Shipping Weight
.46 lb.
Gauge Primary Range Units
in Hg/psi
Vibration Resistance
Liquid-Filled
General
Accuracy Grade
ASME B40.100 Grade A
Nominal Dial Size
2 1/2 in
Accuracy Scale
Mid-Scale
Panel-Mountable
No
Bezel Mounting Type
Fixed
Pointer Material
Aluminum
Blowout Safety Back
No
Pressure Gauge Type
Industrial Pressure Gauge
Case Depth
1.2 in
Pressure Range Type
Compound
Case Diameter
2.65 in
Pressure and Vacuum Gauge Type
Compound Gauge
Cleaned for Oxygen Service
No
Primary Pressure Range
30 to 0 to 30
Dry Dampening Feature
None
Primary Scale Units
in Hg/psi
Field Fillable
No
Process Connection
1/4 in NPT Male
Freeze Resistant Movement
No
Process Connection Gender
Male
Gauge Accuracy Grade
Grade A - Industrial
Process Connection Location
Bottom
Gauge Case Liquid
Glycerin
Process Connection Size
1/4 in
Gauge Wetted Parts
Copper
Process Connection Type
NPT
Includes Calibration Certificate
No
Removable Bezel
No
Includes Mounting Hardware
No
Scale Type
Dual
Includes Vent Plug
Yes
Secondary Pressure Range
0 to 2
Lens Material - Gauge
Plastic
Secondary Scale Units
bar
Liquid-Filled Case
Yes
Sensor Material
Copper Alloy
Manufacturer Warranty Length
1 yr
Standards
ASME

Product Description

Compound Gauge, General Purpose, 2 1/2 in, Basic Gauge Case Material Stainless Steel, Basic Gauge Wetted Parts Copper, 1/4 in, MNPT, Gauge Connection Location Bottom, -30 to 0 to 30, in Hg/psi, +/-2-1-2 Percent, Gauge Panel Mountable No, Liquid Filled Yes, Gauge Primary Range Smallest Graduation 1/0.5, Gauge Case Material Stainless Steel, Gauge Case Color Stainless Steel, Calibration Certificate Included No
