HARRINGTON

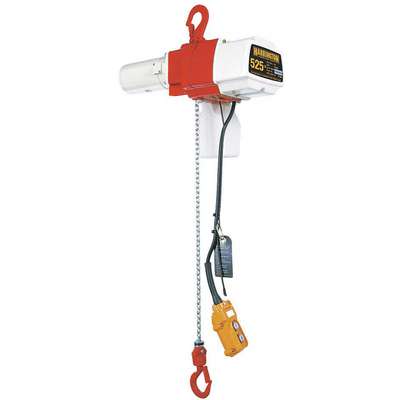

H3 Electric Chain Hoist, 525 lb. Load Capacity, 120V, 20 ft. Hoist Lift, 44/10 fpm
Hover over image to magnify
#926552-4 | Pkg Qty: 1
$4,058.32 pkg | $4,058.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps @ Low Volts
10
Load Capacity
525 lb.
Brake
Weston Style
Lubrication Type
Oil Bath
Brand
HARRINGTON
Material
Die Cast Aluminum
Classification
H3
Mfr. Part Number
ED525DS-20
Clutch Style
Friction
Mfr. Warranty Length
1 yr.
Color Family
Red
Minimum Between Hooks
13 in.
Control
120V Push Button Control Pendant
Motor HP
0.8
Finish
Electrostatic Enamel
Number of Speeds
2
Hoist Lift
20 ft.
Package Quantity
1
Hoist Mount
Hook Mounted - No Trolley
Phase
1
Housing Depth
5 in.
Reeving
1
Housing Length
16-15/16 in.
Shipping Weight
42 lb.
Housing Width
6-1/2 in.
Thermal Protection
No
Item
Electric Chain Hoist
Voltage
120
Lift Speed
44/10 fpm
General
Clutch
Friction
Includes
Chain Container
Control Cord
16 ft
Min. Between Hooks
13 in
Headroom
13"
Standards
ASME B30.16, ASME HST-1, NFPA 70
Product Description
Single-Phase Dual-Speed Electric Chain Hoists
- Heat-treated gearing Dual-brake system with a Weston-style mechanical load brake and a regenerative brake High-performance friction clutch Chain container included Manganese alloy and nickel chain construction Meet ANSI/ASME B30.16, ASME HST-1, and NFPA 70 standards
- Handle awkward loads with precise load positioning and easy-to-use controls. Compact and lightweight, die-cast aluminum body with low headroom allows easy installation and portability.
- Dual-Speed
- Low speed can be adjusted from 0-100% of maximum speed by setting a screw within pendant.
Expertly Selected Product Pairings
Documents
Item Barcode
Electric Chain Hoist,525 Lb.,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6HJR2 | Electric Chain Hoist, |
 | UNSPSC CODES | 24101602 | |
 | VMRS (ATA) CODES | 053-006-009 | Electric Chain Hoist, |
