HUBBELL WIRING DEVICE-KELLEMS

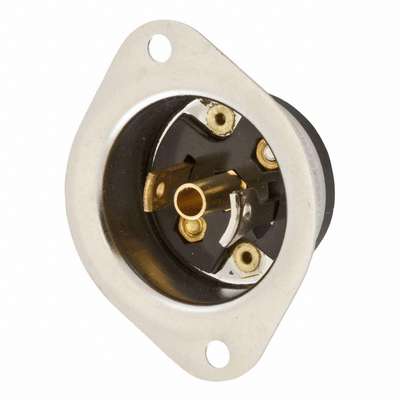

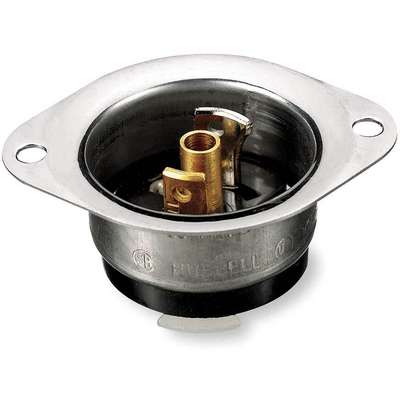

Hubbell Wiring Device-Kellems Midget Locking Flanged Inlet, 120 VAC Voltage, 15 Amps, NEMA Configuration: ML-2P, Number of Wires: 3
Hover over image to magnify
#926543-9 | Pkg Qty: 1
$34.35 pkg | $34.35 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Maximum Wire Size
14 AWG
Amps
15 A
Mfr. Part Number
HBL7595
Blade Material
Brass
Midget Locking
Yes
Body Material
Stainless Steel
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Black
NEMA Configuration - Plugs & Connectors
ML2-15
Compatible With
Midget Twist-Lock
NEMA Plug Configuration
ML2-15P
Current Rating
15 A
Number of Blades
3
Face Plate Width
1.63 in.
Number of Poles
2
Flange Material
Stainless Steel
Number of Wires
3
Flange Type
Flanged
Package Quantity
1
For Location
Indoor
Phase
Single
Grounding
Grounded
Shipping Weight
.1 lb.
Housing Color
Black
Standards
CSA Certified C22.2 No. 42, UL 498
Housing Material
Stainless Steel
Type
2 Pole 3 Wire
IP Rating
IP20
Voltage
120V AC
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Item
Midget Locking Flanged Inlet
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Market
Industrial
Resistance Properties
Heat Resistant, Moisture Resistant
NEMA Configuration
ML2-15
Product Description
Locking Devices
- Midget Devices
- Nylon plugs and connector bodies resist impact and abuse. Weatherproof boots protect devices from moisture, dust, metal filings, etc. Angle devices are low profile for use in limited spaces. Valise devices have offset jaw cord grips to prevent strain on terminals. 2-wire valise devices have bundling clamp screw terminals; 3-wire valise devices have insulation displacement terminals. UL Listed and CSA Certified.
