CHIEF

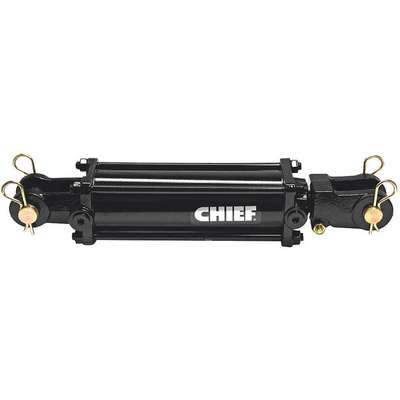

Double Acting Tie Rod Hydraulic Cylinder; 2 Bore Dia. (In.), 20 Stroke (In.)

Hover over image to magnify
Hydraulic Cylinder,2" Bore Dia.
Hydraulic Cylinder,2" Bore Dia.

#926543-3 | Pkg Qty: 1

$304.83 pkg | $304.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CHIEF
Package Quantity
1
Item
Hydraulic Cylinder
Shipping Weight
27.5 lb.
Mfr. Part Number
202011TCU3
General
Bore Dia.
2 in
Ring Material
Polyurethane
Column Load
7050 lb
Rod Dia.
1 1/8 in
Cylinder Style
Tie-Rod
Rod Seal Type
Urethane U-Cup
Includes
Pins and Clips
Single Acting/Double Acting
Double Acting
Max. Pressure
3,000 psi
Temp. Range
-20 Degrees to 180 Degrees F
Pin Dia.
1 in
Tie Rods
High Tensile
Piston Rod Material
Chrome Plated
Wear Band Material
Durable, Non-metallic
Piston Seal Type
Pre-loaded

Product Description

Heavy-duty tie-rod cylinders have a thicker body wall and larger rod diameter than standard-duty tie-rod cylinders, making them suitable for use in hydraulic systems up to 3000 psi. The tie rods are made of high-tensile steel and are thicker than standard-duty tie rods to provide additional strength and rigidity. Hard chrome-plated piston rods made of high yield-strength are precision ground and polished for smooth movement.

Tie-rod hydraulic cylinders are have four rods (bolts) that connect the ends of a double-acting hydraulic cylinder to add strength and stability to the cylinder and prevent it from coming apart under pressure. Double-acting tie-rod hydraulic cylinders provide power in both directions (extending and retracting), which allows for more precise movement. They have a linear actuator and are used in agricultural equipment, industrial machinery, and construction equipment to support, lift, and press heavy loads. Seals can be replaced as needed to keep cylinders in good working order. Clevis mounts on both ends allow the cylinder to be mounted directly to the equipment. The rod end has a clevis attachment that is welded to the body for strength and stability. The piston-side end cap has a clevis bracket for attaching to equipment.
