SQUARE D

Square D 24VAC Coil Volts, General Purpose Relay, 15A @ 240VAC/10A @ 28VDC Contact Rating, Square

Hover over image to magnify

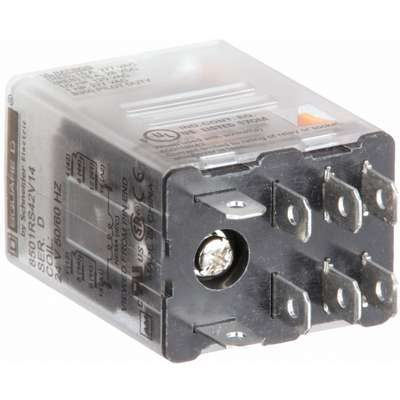

Relay,8Pin,Dpdt,15A,24VAC
PI_Asset_930021
Relay,8Pin,Dpdt,15A,24VAC
PI_Asset_930021
Square D 24VAC Coil Volts, General Purpose Relay, 15A @ 240VAC/10A @ 28VDC Contact Rating, Square Video

#926541-1 | Pkg Qty: 1

$62.03 pkg | $62.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
15 A @ 240 V
Mounting
Plug In
Base Type
Square
Number of Pins
8
Body Depth
1.07 in.
Number of Poles
2
Body Height
1.37 in.
Overall Height
1.65 in.
Body Width
0.83 in.
Package Quantity
1
Brand
SQUARE D
Pins
8
Coil VA Rating
1.3
Plug-In Relay Style
General Purpose
Coil Volts
24 VAC
Push To Test
Manual
Contact Form
DPDT
Relay Power Consumption
1.1 VA
Contact Material
Silver Cadmium Oxide
Resistive Contact Amp Rating
10A @ 120/240VAC, 10A @ 28VDC
Contact Rating
10 A @ 240 VAC/28 VDC
Shipping Weight
.08 lb.
DC Contact Rating
10 A @ 28 V
Socket
Mfr. No. 8501NR42
Inductive Contact Amp Rating
10A
Socket Code
C
Input Power Consumption
1.3 VA
Status Indicator
No
Item
General Purpose Relay
Warranty
5ZZX3
Mfr. Part Number
8501RS42V14
General
AC Contact Rating - Relay
15A @ 240V
HP @ 120V
1/10 hp
Base Type - Plug In Relay
Square
HP @ 240V
1/10 hp
Body Depth - Relay
1.07 in
Mounting - Relay
Plug In
Body Height - Relay
1.37 in
Number of Pins - Relay
8
Body Width - Relay
0.83 in
Overall Height - Relay
1.65 in
Contact Form - Relay
DPDT
Power Consumption - Relay
1.1 VA
DC Contact Rating - Relay
10A @ 28V
Socket Code - Relay
D
Features
SPDT through 4PDT, AC or DC operated, Horsepower rated, Socket compatible, Manual operator/ Green LED pilot light options
Standards
CSA Certified

Product Description

General Purpose Relay, Coil Volts 24V AC, AC Contact Rating - Relay 15A @ 240V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay C, Power Consumption - Relay 1.1 VA, Contact Material Silver Cadmium Oxide, Status Indicator No, Push To Test Manual
