CLE-LINE

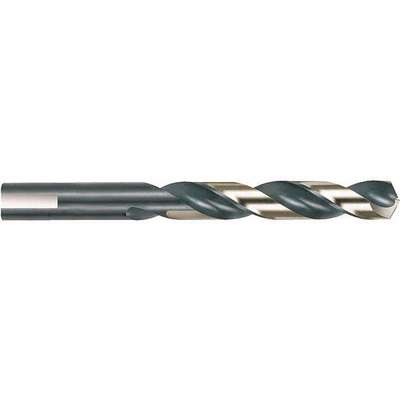

Jobber Drill Bit, 8.50mm, High Speed Steel, Black/Gold, List Number 1878

Hover over image to magnify
Jobber Drill Bit,8.50mm,Hss,
Jobber Drill Bit,8.50mm,Hss,
Jobber Drill Bit, 8.50mm, High Speed Steel, Black/Gold, List Number 1878 Video
Jobber Drill Bit, 8.50mm, High Speed Steel, Black/Gold, List Number 1878 Video

#926508-6 | Pkg Qty: 1

$7.94 pkg | $7.94 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
1878
Decimal Equivalent
0.3346
Maximum Drilling Depth
1-5/16 in.
Depth x Diameter Ratio
4xD
Mfr. Part Number
C74016
Drill Bit Dimension Type
Metric
Number of Flutes
2
Drill Bit Finish
Black/Gold
Overall Length
117 mm
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
8.50 mm
Series
1878
Drill Point Length
0.0693 mm
Shank Diameter
8.5 mm
Finish
Black/Gold
Shank Length
42 mm
Flute Length
75 mm
Shank Type
Straight with Three Flats
Flute Type
Spiral
Shipping Weight
.08 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
28
General
Application
For Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, High-Temperature Alloys, Titanium Alloys and Hard Materials
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Depth:Dia. Ratio
4xD
Measurement System
Metric
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Split Point
Shank Dia.
8.5 mm
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight with Three Flats
Drill Length Class
Jobber Length
Standards
DIN 338
Finish - Machining
Black & Gold

Product Description

The black-and-gold finish on these drill bits lubricates the bits and provides some resistance to wear and rust. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece. They also have flats on their shank that help prevent the bits from slipping in a drill chuck when drilling at high speeds or under heavy loads.

Item Barcode
9265086
Jobber Drill Bit,8.50mm,Hss,
 NameItemDescription
Grainger DropshipGrainger Dropship407G73Jobber Drill Bit,8.50mm,
UNSPSC CODESUNSPSC CODES23241634
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Jobber Drill Bit,8.50mm,
