HUBBELL WIRING DEVICE-KELLEMS

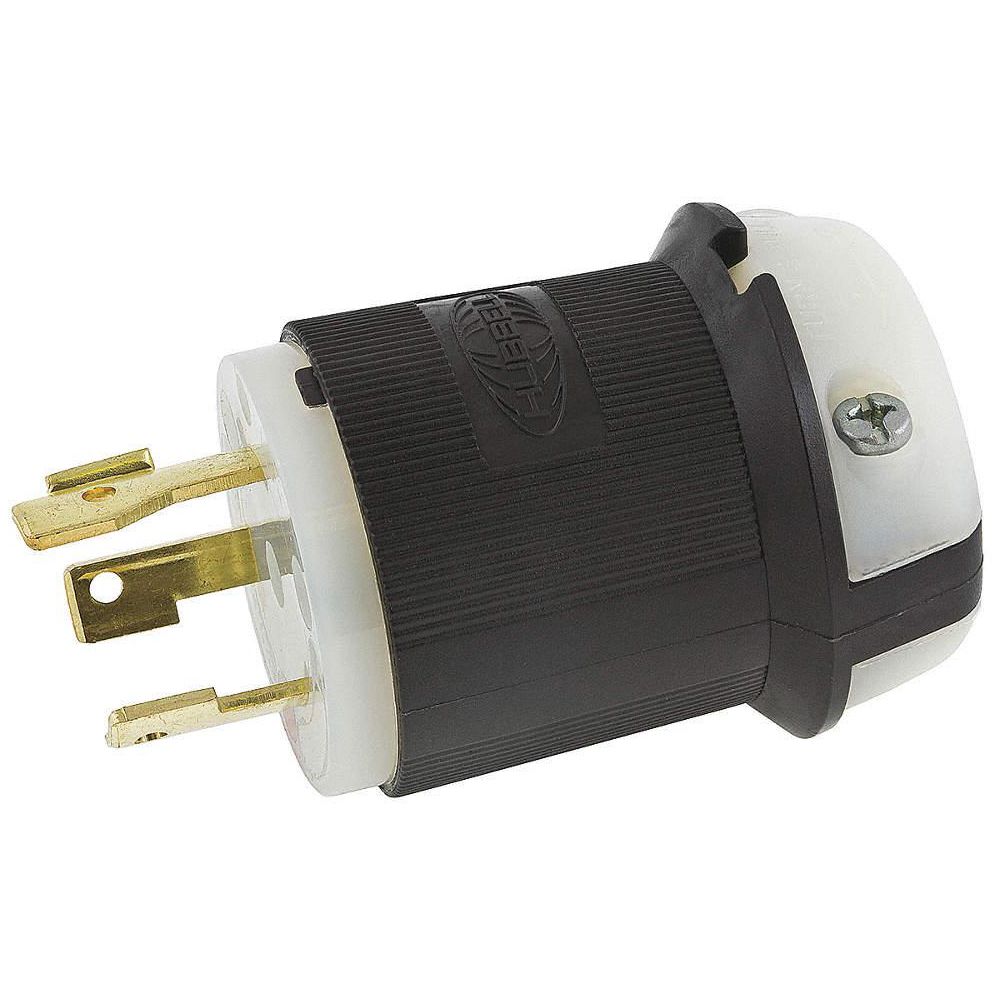

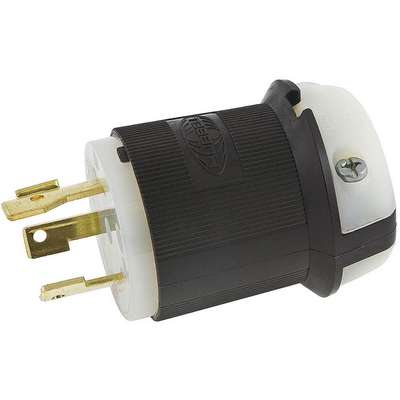

Hubbell Wiring Device-Kellems 30A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: L8-30P

Hover over image to magnify
Plug,480VAC,30A,L8-30P,2P,3W,
PI_Asset_1982298
Plug,480VAC,30A,L8-30P,2P,3W,
PI_Asset_1982298

#926492-4 | Pkg Qty: 1

$49.53 pkg | $49.53 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
30 A
Material
Nylon
Antimicrobial
No
Maximum Operating Temperature
75 °C
Blade Material
Brass
Maximum Wire Size
8 AWG
Body Length
2.26 in.
Mfr. Part Number
HBL2641
Boot Code
B
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
16 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
L8-30
Connection Orientation
Straight
NEMA Plug Configuration
L8-30P
Cord Size
0.360 in. to 0.930 in.
Number of Blades
3
Corrosion Resistant
No
Number of Poles
2
Current Rating
30 A
Number of Wires
3
Description
Insulgrip, Grounding
Outside Diameter
2.26 in.
Face Diameter
1.97 in.
Overall Length
2.26 in.
For Environment
Dry
Package Quantity
1
For Location
Indoor
Phase
Single
For Maximum Cable Diameter
0.93 in.
Polarized
Yes
For Minimum Cable Diameter
0.325 in.
Shipping Weight
.3 lb.
Grade
Industrial
Shrouded
No
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
HP
5 HP
Subcategory
Plugs
Horsepower
5 hp
UL 94 Flammability Rating
HB
Housing Material
Nylon
Voltage
480V AC
IP Rating
IP20
Wire Connection Type
Screw Terminals
Item
Locking Plug
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L8-30P
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
480V AC
HP
5.0

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
