BOSTON GEAR

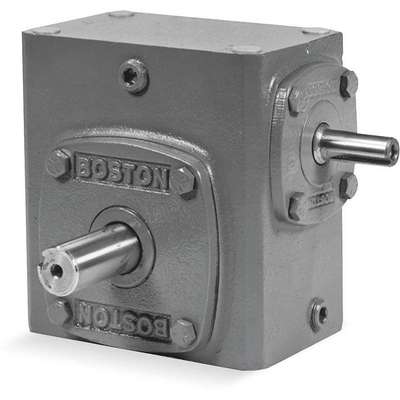

Standard Cast Iron Indirect Drive Speed Reducer, Single Output, 200 lb. Overhung Load

Hover over image to magnify
Speed Reducer,Indirect Drive,,
Speed Reducer,Indirect Drive,,

#926489-3 | Pkg Qty: 1

$742.88 pkg | $742.88 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Base
Optional
Overhung Load
200 lb.
Bearings
Tapered Roller
Package Quantity
1
Brand
BOSTON GEAR
Pinion Material
Hardened Steel
Dimension U
5/8 in.
Reducer Model Number
713-40-G
Duty
Standard
Rotation
Forward/Reversible
Gear Material
Hardened and Ground Steel
Seal Type
Double Lip
Gear Type
Worm
Shaft Orientation
Right Angle
Housing Material
Cast Iron
Shipping Weight
12 lb.
Item
Speed Reducer
Single/Double Output/Universal
Single Output
Lubrication
Klubersynth UH1 6-460
Solid/Hollow Output Shaft
Solid
Mfr. Part Number
713-40-G
Speed Reducer Type
Indirect Drive
Nominal Output RPM
44
Worm Center Distance
1.33 in.
Number of Stages
1
Worm Gear Material
Bronze
Output Shaft Height
1-3/4 in. in.
General
Input RPM
1,750 RPM
Output Shaft Dia.
5/8 in
Max. Input HP
0.16 hp
Output Torque @ 1/4 HP
178 in-lb
Max. Output Torque
165 in-lb
Reducer Model No.
713-40-G
Nominal Ratio
1900-01-01 16:01:00
Standards
AGMA

Product Description

Speed Reducer, Indirect Drive, Right Angle Shaft Orientation, Standard Duty, 1,750 Input RPM, 44 Nominal Output RPM, Worm Center Distance 1.33 in, Overhung Load 200 lb, 40:1 Nominal Ratio, Max. Input HP 0.16 hp, Max. Output Torque 165.0 in-lb, Number of Stages 1, Forward/Reversible Rotation, Optional Base, Tapered Roller Bearings, Hardened Steel Pinion Material, Worm Gear Type, Cast Iron Housing Material, Single Output, Output Shaft Dia. 5/8 in, Output Shaft Height 1 3/4 in
