Square D Safety Switch, 3R NEMA Enclosure Type, 30 Amps AC, 3 HP @ 240VAC HP

Hover over image to magnify

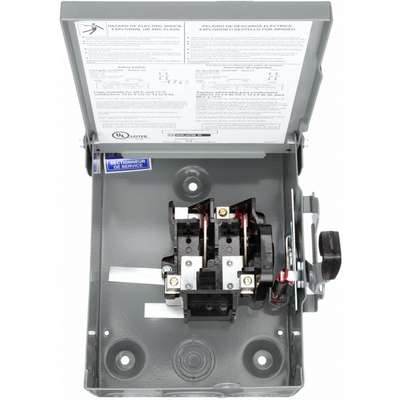

Safety Switch,240VAC,2PST,30
PI_Asset_927691
Safety Switch,240VAC,2PST,30
PI_Asset_927691

#926461-4 | Pkg Qty: 1

$174.97 pkg | $174.97 ea
Item Number 926461-4
Scanner Description Safety Switch,240VAC,2PST,30
Inventory Status Drop Ship Item
Weight 4.3 lb
Brand SQUARE D

Technical Specifications

Amperage
30
Metallic / Non-Metallic
Metallic
Amps
30 A
Mfr. Part Number
DU221RB
Amps AC
30
NEMA Enclosure Type
3R
Brand
SQUARE D
NEMA Rating
3R
Contact Form
2PST
Number of Poles
2
Depth
3.8 in.
Number of Wires
2
Duty
General
Pack Quantity
1
Fusible / Nonfusible
Nonfusible
Phase
1
Height
9.6 in.
Protection Method
Nonfusible
Horsepower
3 HP @ 240VAC
Type
Nonfusible
IP Rating
14
Voltage
240 VAC
Item
Safety Switch
Width
7.7 in.
Material of Construction
Galvannealed Steel

Product Description

Suitable for use with service entrance equipment, this general-duty safety switch provides a 10kA short-circuit current rating when used with, or protected by, a Class H fuse. It has a 100kA short-circuit current rating when used with, or protected by, a Class R cartridge-type fuse (with a Class R fuse kit installed). Features include visible blades for positive identification that the switch is Off, a quick-make, quick-break operating mechanism, and spring-reinforced, plated-copper fuse clips. The lugs are suitable for aluminum or copper conductors. There are multiple padlock provisions in the Off position. An equipment grounding kit, available separately, is required.
