FILL-RITE

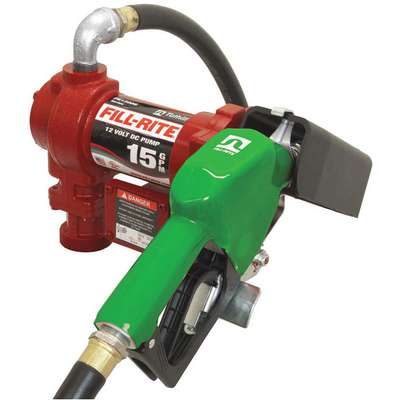

Fuel Transfer Pump: 12 VDC, 15 GPM, 12 ft Hose Lg, Cast Iron, Auto, 1/4 HP, Rotary Vane

Hover over image to magnify
Fuel Transfer Pump,15 Gpm,1in.
PI_Asset_978202
PI_Asset_978203
PI_Asset_978204
PI_Asset_978205
Fuel Transfer Pump,15 Gpm,1in.
PI_Asset_978202
PI_Asset_978203
PI_Asset_978204
PI_Asset_978205

#926427-4 | Pkg Qty: 1

$581.31 pkg | $581.31 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Bearing Type
Sealed Ball
Nozzle Type
Automatic
Brand
FILL-RITE
Outlet Size
3/4 in NPT
Bypass Valve
Yes
Outside Height
8 in.
Compatible Fluids
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Overall Length
11 in.
Duty Cycle
30 min.
Overall Width
13 in.
GPM
15 gpm
Package Quantity
1
Horsepower
1/4
Power Cord Length
20 ft.
Hose Diameter
1 in.
Pressure Range
0 psi to 16 psi
Hose Length
12 ft.
Pump Design
Rotary Vane
Housing Material
Cast Iron
Pump Mount Size
2 in.
Inlet Size
1 in NPT
RPM
2600
Item
Fuel Transfer Pump
Seal Material
Carbon
Maximum Viscosity
50 SSU
Seal Type
Mechanical
Metered
No
Self-Priming
Yes
Mfr. Part Number
FR1210HA1
Shipping Weight
34.65 lb.
Mfr. Warranty Length
2 yr
Transfer Pump Application
Agriculture, Construction, Farming
Nozzle Material
Aluminum
Voltage
12 VDC
General
Features
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Includes
1 in Inlet/Outlet, Hose, Automatic Nozzle, Suction Pipe, Battery Cable
For Use With
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Standards
UL Listed
Hose Dia.
1 in

Product Description

Rugged and reliable Fill-Rite fuel transfer pump is DC powered for remote operation and features heavy-duty cast-iron construction with a cast-bronze rotor and bronze rotary vanes. Model comes with a built-in strainer, 2” threaded base for tank mounting, 20” to 34” steel telescoping suction pipe, and a 12-ft. hose with static ground wire.
