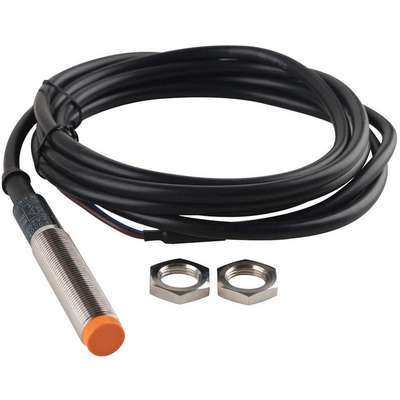

25 Hz Inductive Cylindrical Proximity Sensor with Max. Detecting Distance 4.0mm

Zoom Icon

#926415 | Pkg Qty: 1

$83.10 pkg | $83.10 ea
Item Number 926415
Scanner Description Proximity Sensor,Inductive,4mm,
Inventory Status Drop Ship Item
Weight 0.23 lb
Brand IFM

Technical Specifications

Basic Material
Metal
NEMA Type
IP67
Basic Proximity Sensor Case Material
Metal
Operating Frequency
25 Hz
Brand
IFM
Operating Frequency (Hz)
25
Case Material
Brass White Bronze Coated
Operating Temp Range
-13° to 158°F
Circuit Type
2 Wire
Output Mode
NO
Connector Type
2m Cable
Pack Quantity
1
Description/Special Features
Red LED Output Indication
Power Requirement
20 to 250VAC
Detecting Distance
4mm
Proximity Sensing Method
Inductive
Detecting Distance (mm)
4
Proximity Sensor Diameter
12.0mm
Diameter - Proximity Sensors/Switches
12mm
Proximity Sensor Electrical Connection
2m Cable
Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
25 Hz
IP Rating
67
Proximity Sensor Output Circuit Type
2 Wire
Includes
(2) Lock Nuts
Proximity Sensor Power Requirement
20 to 250VAC
Item
Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Length
91 mm
Sensing Method
Inductive
Material of Construction
Brass
Shielded/Unshielded
Unshielded
Max. Current Load
250mA
Standards
CE Compliance
Max. Detecting Distance
4 mm
Temp. Range (F)
-13 to 158
Max. Load (mA)
250
Voltage Range
20-250VAC
Mfg Part Number
IF0302
Voltage Type
AC

Product Description

This inductive proximity sensor is designed for noncontact detection of metal targets in position-sensing applications and part-presence applications. It features an extended sensing range and robust housing design to reduce failure from mechanical damage in industrial applications. It also features 4 visible LED outputs to indicate status and simplify troubleshooting.

Item Barcode
9264150
  Name Item Description
Grainger Dropship Grainger Dropship 35T351 Proximity Sensor,
UNSPSC CODES UNSPSC CODES 41111926
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Proximity Sensor,
