EATON BUSSMANN

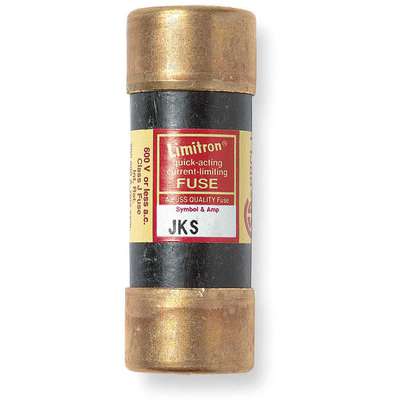

Eaton Bussmann 1A Fast Acting Melamine Fuse with 600VAC Voltage Rating; JKS Series

Hover over image to magnify
Fuse,1A,600VAC,Fast,Ser Jks
Fuse,1A,600VAC,Fast,Ser Jks

#926399-4 | Pkg Qty: 1

$50.17 pkg | $50.17 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
600 VAC
Indicating
No
Amperage
1 A
Indicating / Nonindicating
Nonindicating
Body Material
Melamine
Interrupt Rating
200kA at 600VAC
Body Style
Cylindrical
Item
Fuse
Brand
EATON BUSSMANN
Length
2-1/4 in.
Class
J
Mfr. Part Number
JKS-1
DC Voltage Rating
Not Rated
Package Quantity
1
Diameter
13/16 in.
Rejection / Nonrejection
Nonrejection
Element
Single
Series
Jks
Functionally Equal To
Mersen/Ferraz Shawmut A4J, Littelfuse JLS
Shipping Weight
.1 lb.
Fuse Amps
1A
Speed
Fast Acting
Fuse Holder Code
Z
Type
Low Voltage
Fuse Speed
Fast Acting
Voltage Rating
600 VAC
Fuse Voltage Rating
600 VAC
General
Compatible Fuse Block Series
CH30J, CH60J, J600, JM600, JM601, JM602, JM604, JM606, JP600, JT600, JTN600
Fuse Size
2-1/4 in L x 13/16 in dia
Equivalent Series
A4J, JKS, JLS
Standards
CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
Fits Fuse Block Style
Nonrejection
Visual Indication
Nonindicating

Product Description

Fast-acting, nonindicating UL Class J fuses open within seconds of being exposed to overloads and short circuits. Also called fast-blow Class J fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges. They have no indicator for identifying a blown fuse, so they're sometimes used with an indicating fuse block or cover.

UL Class J fuses have a high interrupting rating for protecting against short circuits and are ideal for IEC motor starter applications. These 600VAC fuses are not interchangeable with any other UL fuse class. They are current-limiting to prevent electrical damage by disconnecting circuits before they're exposed to the full magnitude and duration of an overcurrent.
