SQUARE D

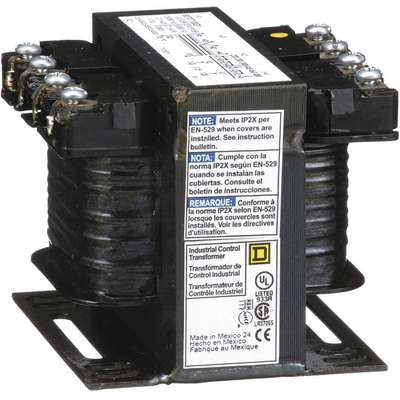

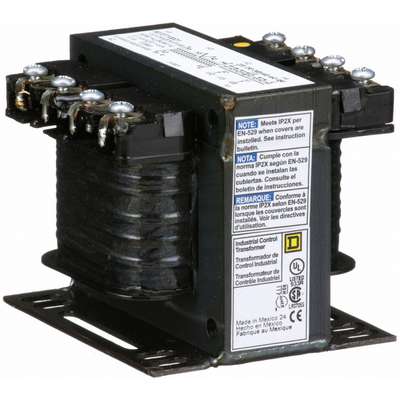

Square D Control Transformer, Input Voltage: 240 VAC, 480 VAC, Output Voltage: 120 VAC
Hover over image to magnify
#926392 | Pkg Qty: 1
$192.32 pkg | $192.32 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SQUARE D
Mounting
Foot
Depth
3.38 in.
Output Voltage
120 VAC
Enclosure Finish
Epoxy Resin Varnish
Pack Quantity
1
Enclosure Style
Open
Phase
1
Enclosure Type
Open
Protective Device
None
Fused
No
Shipping Weight
3.8 lb.
Height
2.89 in.
Temperature Rise
55C
Hz
50/60
Transformer Type
Wire-Wound
Input Voltage
240/480 VAC
Type
Control
Item
Control Transformer
VA Rating
100 VA
Mfr. Part Number
9070T100D1
Voltage Output
120
Mfr. Warranty Length
1 yr.
Width
3.34 in.
General
Enclosure Style - Transformer
Open
Output Voltage - Transformer
120V AC
Hz - Electrical
50 Hz, 60 Hz
Phase - Electrical
1
Input Voltage - Transformer
240V AC, 480V AC
Temp. Rise
55°C
Mounting - Transformer
Foot
VA Rating - Transformer
100 VA
Product Description
The Type T units are designed for the global market and are the best choice when size and cost are of concern. This is a popular and complete offering of industrial control transformers. Features include customer installed accessories such a finger-safe covers, fuse blocks, and fuse clips. Copper wound, vacuum impregnated with varnish.
Documents
Aluminum vs. Copper Conductors In Low Voltage Dry Type Transformers Bulletin
Energy Efficient Transformers Catalog
Industrial Control Transformers Catalog
Low Voltage Transformer Solution For Infrared Scanning Applications Bulletin
Type T K Industrial Control Transformers Spec Sheet
Type T Multitap Universal Control Transformer Spec Sheet
Item Barcode
Control Transformer,100VA,2.89
