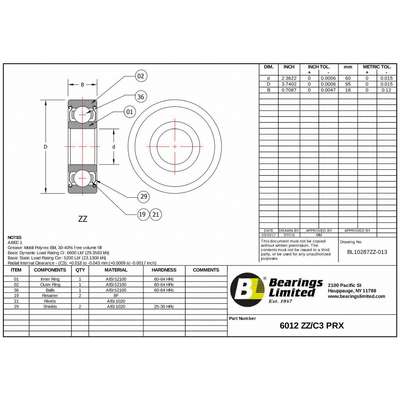

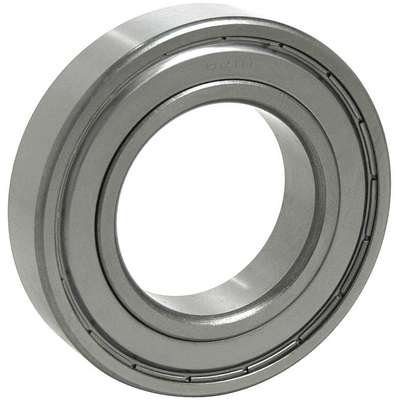

Radial Ball Bearing: 60 mm Bore Dia., 95 mm Outside Dia., 18 mm Width, Double Shielded

Hover over image to magnify
Radial Ball Bearing,Ps,60mm,
PI_Asset_1762487
Radial Ball Bearing,Ps,60mm,
PI_Asset_1762487

#926371-4 | Pkg Qty: 1

$26.51 pkg | $26.51 ea
Item Number 926371-4
Scanner Description Radial Ball Bearing,Ps,60mm,
Inventory Status Drop Ship Item
Weight 0.91 lb
Brand BL

Technical Specifications

Key Specifications
ABEC Tolerance
1
Mfr. Part Number
6012 ZZ/C3 PRX
Bearing Material
Steel
Outside Diameter
95 mm
Bore Diameter
60 mm
Outside Diameter Tolerance
+0/-0.015mm
Bore Tolerance
+0/-0.015mm
Pack Quantity
1
Brand
BL
Seal/Shield Type | Radial Ball Bearings
Double Shielded
Cage Material
Pressed Steel
Shield Material
Steel
Dynamic Load Capacity
6,600 lb.
Single Row/Double Row
Single Row
Industry Number
6012ZZ/C3
Static Load Capacity
5200 lb.
Item
Radial Ball Bearing
Temperature Range
-40° to 350°F
Lubrication
Polyrex EM Grease
Width
18 mm
Maximum RPM
7,000 RPM
General
Temp. Range
-40 Degrees to 350 Degrees F

Product Description

This radial ball bearing features single-row alignment.

Item Barcode
9263714
  Name Item Description
Grainger Dropship Grainger Dropship 35HZ73 Radial Ball Bearing,PS,
UNSPSC CODES UNSPSC CODES 31171504
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Radial Ball Bearing,PS,
