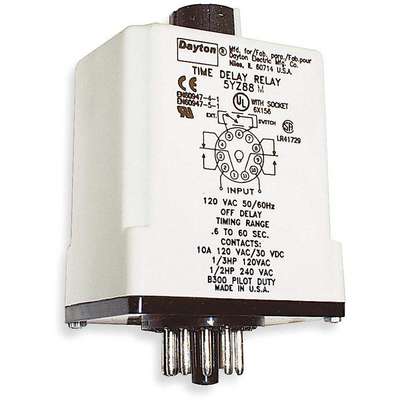

Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact

Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact
Time Delay Relay,120VAC/Dc,10A,
PI_Asset_1355352
PI_Asset_1355353
Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact Video

#926320-6 | Pkg Qty: 1

$95.15 pkg | $95.15 ea
Item Number 926320-6
Scanner Description Time Delay Relay,120VAC/Dc,10A,
Inventory Status Drop Ship Item
Weight 0.32 lb
Brand DAYTON

Technical Specifications

AC Contact Rating
10A @ 240V
Hz
50/60
Adjustment Method
Potentiometer
Input Power Consumption (Burden)
2.5VA, 2.0W
Adjustment Method - Timer
Potentiometer
Input or Control Voltage
120VAC/DC
Base Type
Octal
Item
Single Function Time Delay Relay
Body Depth
1.7 in.
Max. Time Setting
60 sec.
Body Height
2.9 in.
Mfr. Part Number
1EGC2
Body Width
2.4 in.
Min. Time Setting
0.60 sec.
Brand
DAYTON
Mounting
Plug In
Coil Rating
2VA
Number of Contacts
2
Coil VA Rating
2
Number of Functions
1
Coil Volts
120VAC/DC
Number of Pins
11
Contact Amp Rating (Inductive)
10
Number of Poles
2
Contact Amp Rating (Resistive)
10A
Operating Functions
2
Contact Form
DPDT
Overall Height
3.1 in.
Contact Form - Relay
DPDT
Pack Quantity
1
Contact Material
Silver Nickel
Pins
11
DC Contact Rating
10A @ 30V
Relay Power Consumption
2.5VA, 2.0W
Electrical Connection
Socket
Socket
6X156, 1EGP2, 1EGP4
Function
Off Delay
Socket Code
B
Function - Timing Relay
Off Delay
Standards
UR, CSA, CE
HP @ 120V
1/2 (N.O.), 1/3 (N.C.)
Status Indicator
None
HP @ 240V
1/2 (N.O.), 1/3 (N.C.)
Type
Plug-In

Product Description

Dayton’s Time Delay Relay features an Off Delay function with an adjustable timing range of 0.6-60 seconds, 120V AC/DC input voltage and 10A DPDT output contacts, utilizing an 11 pin octal socket.
