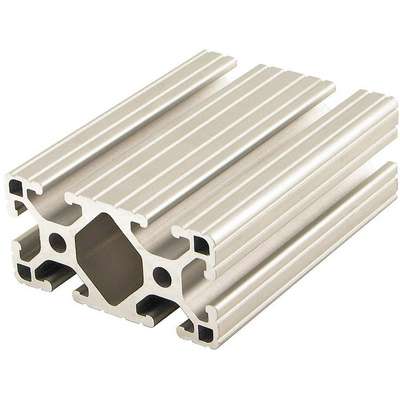

80/20 Framing Extrusion: 15 Series, 8 ft Nominal Lg, Silver, Double, 6 Open Slots, Adjacent-Sides

Hover over image to magnify
T-Slotted Extrusion,15S,97 LX3
T-Slotted Extrusion,15S,97 LX3

#926318-5 | Pkg Qty: 1

$159.33 pkg | $159.33 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
80/20
Package Quantity
1
Item
Framing Extrusion
Shipping Weight
15.9 lb.
Mfr. Part Number
1530-LITE-97
General
Bore Dia. (In.)
0.26 in
Rail Profile
Double
Extrusion Profile
Rectangle
Relative Profile Weight
Lite
Extrusion Texture
Grooved
Slot Location
Adjacent-Sides
Extrusion Type
T-Slotted
Slot Width
0.3 in
Height (In.)
3.0 in
Slot Width (In.)
0.32 in
Number of Open Slots
6
System of Measurement
Inch
Profile Height
3 in
Temper
T5
Profile Shape
Rectangle
Weight per Unit Length
2.02 lb-ft
Profile Type
Double
Weight/Ft. (Lb.)
2.02 lb/ft
Profile Width
1 1/2 in
Width (In.)
1.5 in
Rail HxW
3 in x 1 1/2 in
Yield Strength
35,000 psi

Product Description

Easily machined 6105-T5 aluminum alloy rail can be cut to fit and assembled using common shop tools. Drop-lock feature tightly holds fastened bars together. Suitable for factory automation, machine guarding and enclosures, workstations, tooling specialties, machine frames, carts, shelving, and displays.
