COXREELS

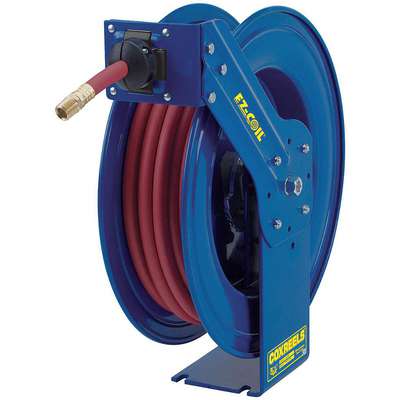

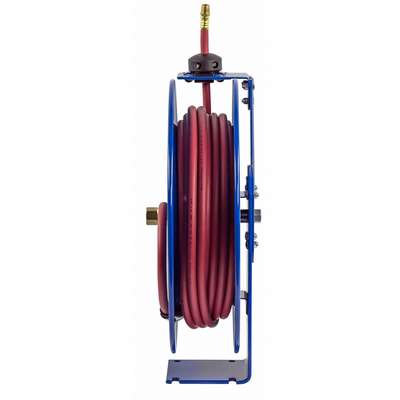

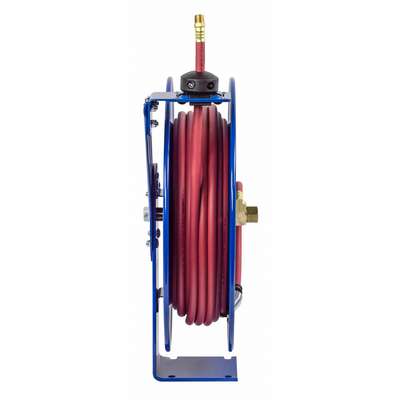

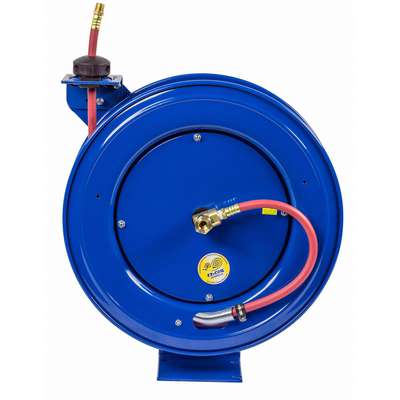

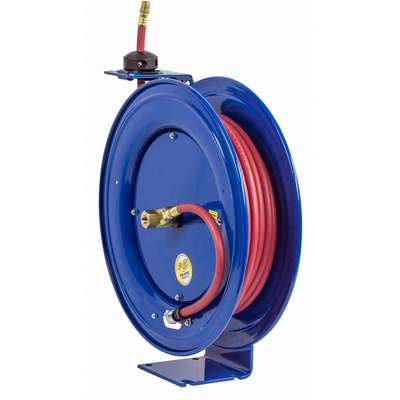

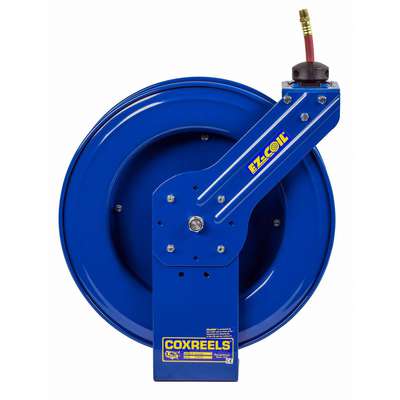

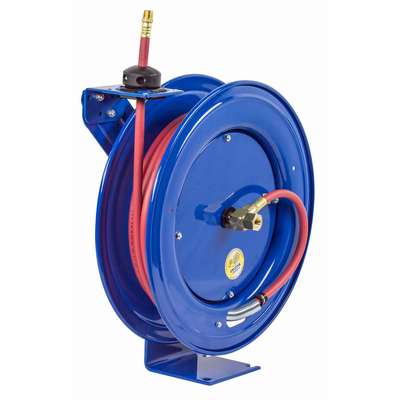

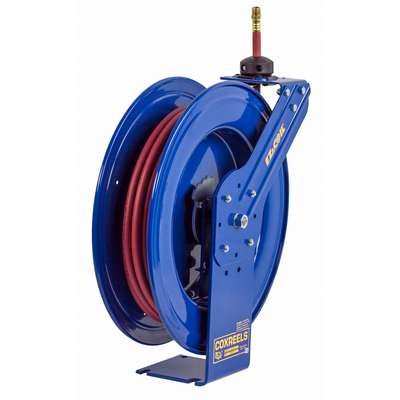

Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red

Hover over image to magnify
Hose Reel,Spring,300psi,1/
PI_Asset_970982
PI_Asset_970983
PI_Asset_970984
PI_Asset_970985
PI_Asset_970986
PI_Asset_970987
PI_Asset_970988
Hose Reel,Spring,300psi,1/
PI_Asset_970982
PI_Asset_970983
PI_Asset_970984
PI_Asset_970985
PI_Asset_970986
PI_Asset_970987
PI_Asset_970988
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video
Spring Return Hose Reel: 50 ft (1/2 in I.D.), 1/2 in MNPT, 300 psi Max Op Pressure, Brass, Blue, Red Video

#926309-9 | Pkg Qty: 1

$640.32 pkg | $640.32 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
COXREELS
Mfr. Part Number
EZ-SH-450
Enclosed
No
Number of Guide Arms
Single Arm
Hose Capacity
50 ft. (1/2 in I.D.)
Package Quantity
1
Hose Reel Group
Spring Return Hose Reels
Pedestal Type
Single Pedestal
Hose Reel Rating
Heavy Duty
Reel Material
Steel
Includes Hose
Yes
Shipping Weight
51.7 lb.
Item
Spring Return Hose Reel
Speed Limited Retraction
Yes
Maximum Pressure
300 psi
General
Base Motion Type
Stationary
Includes
Hose, Hose Guard, Hose Stop
Bearing Construction
Permanently Lubricated
Includes Hose Stop
Yes
Corrosion-Resistant
Yes
Media - Hose Reels
Air, Water
Drive Type - Hose Reels
Spring Return
Mount Base Height
6 in
Finish - Hose Reels
Powder Coated
Mount Base Width
6 in
Fitting Gender
Male x Male
Mount Hole Diameter
1/2 in
Hose Cover Material
PVC
Mounting Hole Center to Center Height
5 in
Hose End Configuration
1/2 in MNPT
Mounting Hole Center to Center Width
4 in
Hose Fitting A Material
Brass
Number of Mount Holes
4
Hose Fitting A Type
NPT
Reel Finish
Powder Coated
Hose Fitting B Material
Brass
Swivel Inlet Gender
Female
Hose Fitting B Type
NPT
Swivel Inlet Size
1/2 in
Hose Inside Dia.
1/2 in
Swivel Inlet Thread Size
1/2 in - 14
Hose Outlet
1/2 in (M)NPT
Swivel Inlet Type
NPT
Hose Outside Dia.
3/4 in
Swivel Material
Brass
Hose Reel Primary Application
Air, Water
Swivel Outlet Gender
Male
Hose Reel Product Group
Spring Return Hose Reel
Swivel Outlet Size
1/2 in
Hose Reel Type
Wall Mount Hose Reel
Swivel Outlet Thread Size
1/2 in - 14
Hose Tube Material
PVC
Swivel Outlet Type
NPT

Product Description

Controlled-retraction air or water spring-return hose reels reduce retraction speed to a safe, steady pace to prevent injuries and hose whipping. The 90° full-flow NPT swivel inlets are machined from solid brass with nitrile swivel seals. The powder-coated, heavy-gauge steel reel features adjustable hose roller guides. The larger chassis and frame hold longer lengths and larger diameters of hose. The dual-axle support system improves stability during operation. These low-pressure (up to 500 psi) reels mount to the floor, wall, ceiling, or on a bench. These controlled-retraction hose reels are used with air or water hoses in manufacturing facilities, service centers, and maintenance operations.
