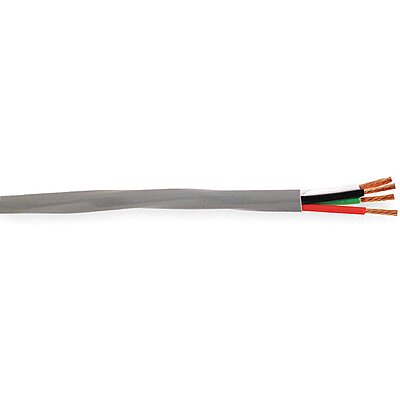

Unshielded Communication Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 4 (0 Pair)

Unshielded Communication Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 4 (0 Pair)
Comm Cable,Unshielded,20/4,
Unshielded Communication Cable, 1000 ft. Length, Gray Jacket Color, Conductors: 4 (0 Pair) Video

#926308-4 | Pkg Qty: 1

$488.23 pkg | $488.23 ea
Item Number 926308-4
Scanner Description Comm Cable,Unshielded,20/4,
Inventory Status Drop Ship Item
Weight 18.3 lb
Brand GENERAL CABLE

Technical Specifications

Application
Public Address Systems, Intercoms, Internal Telephones, Remote Control Circuits, Suitable for EIA RS-232 Applications, Suggested Voltage Rating 300 volts
Nominal Outside Diameter
0.235 in.
Brand
GENERAL CABLE
Number of Conductors
4
Cable Sub-Category
Multi-Conductor
Pack Quantity
1
Cable Type
Unshielded
Package Type
Reel in a Box
Capacitance
28.0 pF/ft
Shielded
No
Color Family
Gray
Shielded/Unshielded
Unshielded
Communication Cable Application
Audio Systems, Computer Systems, Control Systems
Shielding Material
None
Conductor Size
20 AWG
Solid / Stranded
Stranded
Conductor Type
Stranded Copper
Spool Length
1000 ft.
Facing Material
Conductors
Spool/Coil Length
1000 ft.
Insulation
Premium-Grade, Color-Coded PVC (UL1007)
Standards
NEC Article 800 Type CM (UL: 75°C), UL Style 2464 (UL: 80°C, 300V), UL Style 2576 (UL: 80C, 150V), CSA CMG (CSA: 60°C), RoHS Compliant Directive 2002/95/EC, Passes CSA CMG Flame Test
Insulation Material
Premium-Grade, Color-Coded PVC (UL1007)
Stranding
7/28
Item
Communication Cable
Temp. Range
-4° to 176°F
Jacket Color
Gray
Total Number of Conductors
4 (0 Pair)
Jacket Color Family
Gray
Vertical Tray Flame Test
Meets UL 70,000 BTU
Jacket Material
PVC
Voltage
300
Length
1000 ft.
Wire Size
20 AWG
Mfr. Part Number
C6353A.41.10
Wire/Cable Jacket Material
PVC
NEC Article
800
Wire/Cable Size
20 AWG
NEC Article/Type
800 CM

Product Description

Suitable for cable pull-ins and single-site installations, this cable is typically used for industrial equipment control, electric valve actuation, and remote signaling. It can also be used for communications and broadcast applications, in circuits requiring circuit-to-circuit isolation from noise, minimization of capacitance imbalances, and a reduction of EMI interference currents. Features fully annealed, stranded tinned copper conductors.
