OSG

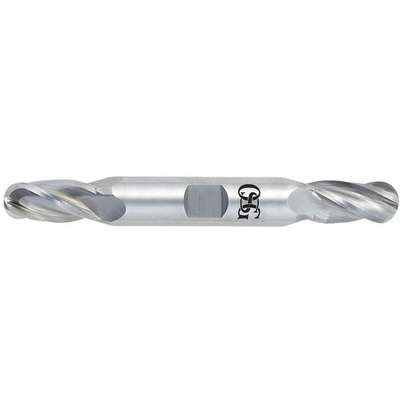

Ball End Mill, 3/16" Milling Diameter, Number of Flutes: 4, 1/2" Length of Cut, Bright (Uncoated)
Hover over image to magnify
#926306-7 | Pkg Qty: 1
$63.49 pkg | $63.49 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OSG
Length of Cut
1/2 in.
Cast Iron Compatibility
Yes
List Number
444BN
Chip-Breaker
No
Mfr. Part Number
444-1875-BN
Cutting Direction
Right
Milling Diameter
3/16 in.
Cutting Direction
Right Hand
Neck Length
Not Applicable
Cutting Type
Center
Non Ferrous Compatability
No
Dimension Type
Fractional Inch
Number of Flutes
4
End Mill Application
Roughing/Finishing
Overall Length
3.2 in.
End Mill Cutting Type
Center Cutting
Pack Quantity
1
End Mill Material
Carbide
Primary Material Application
Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel
Finish
Bright (Uncoated)
Shank Diameter
3/8 in.
Grade
General Purpose
Shank Type
Straight
Hardened Compatibility
No
Shipping Weight
0.1 lb.
Helix Angle
30 deg.
Single End/Double End
Single End
Item
Ball End Mill
General
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
3/16 in
End Mill Style
Ball Nose
Miniature End Mill
No
Finish - Machining
Bright (Uncoated)
Primary Material Application ISO Code
H, K, N, P
Material - Machining
Carbide
Shank Dia.
3/8 in
Material Grade - Machining
General Purpose
Shank Type - Machining
Weldon Flat
Product Description
Four-flute end mills clear chips more quickly than end mills with more flutes and allow for higher feed rates than end mills with fewer flutes. They also typically have larger cores and are less prone to breaking than end mills with fewer flutes. The bright finish on these end mills provides a smooth, polished surface.
