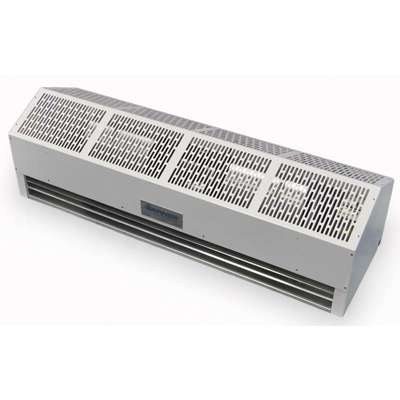

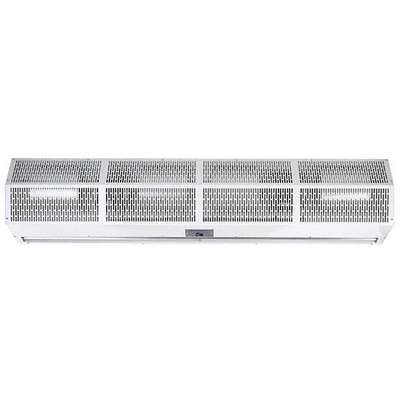

Berner Air Curtain, 3 ft. Max. Door Width, 10 ft. Max. Mount Ht., 67 dBA @ 10 Feet, 3500 fpm
Hover over image to magnify
#926302-3 | Pkg Qty: 1
$2,080.71 pkg | $2,080.71 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Volume
1812 cfm
Motor HP
1/2
Brand
BERNER
Motor Type
Permanent Split Capacitor
Depth
14-1/4 in.
Package Quantity
1
Heated
Yes
Phase
3
Height
14-3/4 in.
Shipping Weight
71 lb.
Item
Heated Air Curtain
Voltage
460
Mfr. Part Number
CHD10-1036EZ-100-3X-G
Width
39 in.
General
Air Curtain Air Velocity
3500 fpm
Includes
(3) Speed Motor with Factory Mounted Wired Fan and Heat Selector Switch, 24V Magnetic Reed Door Limit Swtich, 24V Thermostat, 24V Transformer, Adjustable Time Delay
Air Curtain Air Volume
1812 cfm
Max. Amps
13.4
Air Curtain Heated
Yes
Max. Mounting Height
10 ft
Air Curtain Housing Material
Aluminum
Max. RPM
1,750 RPM
Air Curtain Max. Door Width
3 ft
Number of Motors
1
Air Curtain dBA @ 10 Feet
67 dBA
Standards
UL, CUL Indoor Only
Heating kW
10 kW
Product Description
This Berner™ 3-speed multipurpose heated air curtain provides a sustainable solution that helps lower energy costs by eliminating untempered outside air from entering through open doors. Provides energy savings, comfort, and insect control and is suitable for use in dry, conditioned indoor spaces.
