DEWALT ENGINEERED BY POWERS

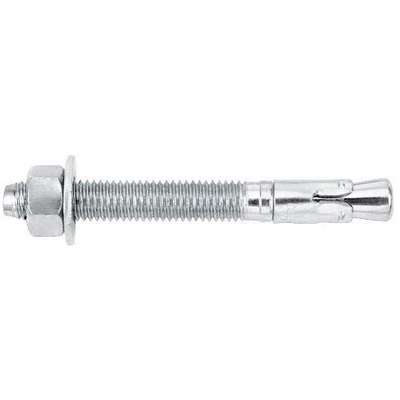

Wedge Anchor: Steel, Seismic Approved, Zinc Plated, 3/4 in Anchor Dia., Medium Carbon, 20 PK

Hover over image to magnify
Expnsion Wedge Anchor,3/4"D,2-
Expnsion Wedge Anchor,3/4"D,2-

#926283-8 | Pkg Qty: 20

$91.80 pkg | $4.59 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
American Concrete Institute 355.2, ICC-ES Acceptance Criteria AC-193, ICC-ES ESR-2818 Category 1 Cracked and Uncracked Concrete, ICC-ES ESR-2966 Concrete Masonry Units (CMU)
Minimum Embedment
3-3/8 in.
Anchor Diameter
3/4 in.
Pack Quantity
20
Anchor Length
4-3/4 in.
Seismic Approved
Yes
Brand
DEWALT ENGINEERED BY POWERS
Shipping Weight
13.2 lb.
Fastener Finish
Zinc Plated
Thread Length
2-1/4 in.
ICC Approved for Cracked Concrete
Yes
Thread Size
3/4"-10
ICC Approved for Un-Cracked Concrete
Yes
Ultimate Pullout
7860 lb.
Item
Wedge Anchor
Ultimate Shear
12685 lb.
Material
Carbon Steel
Ultimate Shear in 3000 PSI Concrete
12685 lb.
Material Grade/Class
Medium Carbon
Ultimate Shear in 4000 PSI Concrete
12685 lb.
Maximum Work Thickness
5/8 in.
Ultimate Tension
7860 lb.
Meets/Exceeds
IBC, IRC 2009 Concrete, IBC, IRC 2006 Concrete and Masonry, IBC, IRC 2003 Concrete and Masonry, Florida Building Code, FM and UL Approved
Ultimate Tension in 3000 PSI Concrete
7860 lb.
Mfr. Part Number
7441SD1-PWR
Ultimate Tension in 4000 PSI Concrete
9075 lb.
General
Includes
Nut and Washer
Ultimate Shear in 4000 PSI Concrete (Lb.)
12,685 lb
Ultimate Pullout (Lb.)
7,860 lb
Ultimate Tension (Lbs.)
7,860 lb
Ultimate Shear (Lb.)
12,685 lb
Ultimate Tension in 3000 PSI Concrete (Lb.)
7,860 lb
Ultimate Shear in 3000 PSI Concrete (Lb.)
12,685 lb
Ultimate Tension in 4000 PSI Concrete (Lb.)
9,075 lb

Product Description

Wedge Anchors

  • Zinc-plated carbon steel
  • Use in Category 1 cracked and uncracked concrete. Include nut and washer.
  • Meet or exceed IBC, IRC, and Florida Building Code. FM Approved.
Item Barcode
9262838
Expnsion Wedge Anchor,3/4"D,2-
 NameItemDescription
Grainger DropshipGrainger Dropship46U142Expnsion Wedge Anchor,
UNSPSC CODESUNSPSC CODES31162102
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Expnsion Wedge Anchor,
