LITHONIA LIGHTING

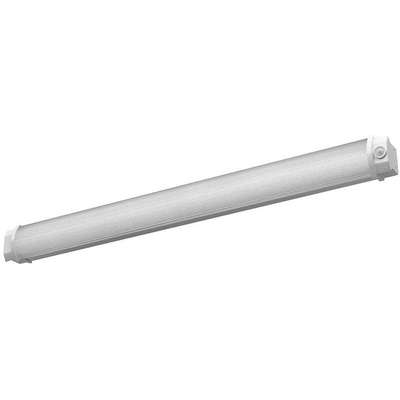

Lithonia Lighting LED Surface Fixture, Dimmable Yes, 120 to 277 V, For Bulb Type Integrated LED

Hover over image to magnify
LED Surface Fixture,50-15/16
PI_Asset_1756893
PI_Asset_1762873
PI_Asset_1771314
PI_Asset_1772851
LED Surface Fixture,50-15/16
PI_Asset_1756893
PI_Asset_1762873
PI_Asset_1771314
PI_Asset_1772851

#926248-4 | Pkg Qty: 1

$379.55 pkg | $379.55 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
LITHONIA LIGHTING
Light Technology
LED
Color Temperature
3500 K
Lumens
2152 lm
Dimming
Yes
Mfr. Part Number
WL4 20L EZ1 LP835 N100 NESPDT7
Height
3-7/8 in.
Number of Lamps
2
Housing Color
White
Package Quantity
1
Housing Material
Steel
Shipping Weight
9.5 lb.
IP Rating
Not Rated
Voltage
120/277 V
Item
LED Surface Fixture
Watts
24 W
Length
50-15/16 in.
General
Ballast Start Type
No Ballast
Green Environmental
Product Contributes To Reducing Energy Consumption
Bulb Included
Yes
LED Replacement For
2 Lamp T8
Color Rendering Index
82
Lamp Quantity
2
Dimmable
Yes
Lens Shape
Architectural
Dimming Method
0-10V
Light Color
White
Dimming Range
100% to 1%
Lighting Certification
DLC 5.0
Emergency Battery Backup
No
Linkable
No
Fixture Ballast Type
No Ballast Required
Linkable Up To
Unlinkable
Fixture Type
Strip Light
Lumens per Watt
115 lm/W
For Bulb Type
Integrated LED
Max. Fixture Wattage
18.7 W
For Max. Bulb Wattage
18 W
Overall Length
50 3/4 in
For Use With
nLight system
Overall Width
4 3/4 in
Green Certification/Other Recognition
DesignLights Consortium (DLC)® Listed
Rated Life
60000 hr

Product Description

Architectural LED wraparound lights have a stylized housing to accent a room and a curved lens to diffuse light across a space. The lens spreads light over a wider area than a straight or beveled square lens. These wraps are commonly used to light retail displays and lounge areas.
