HONEYWELL

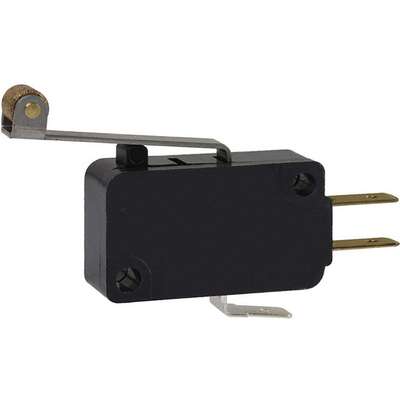

Honeywell 15A @ 240V Lever, Long, Roller Miniature Snap Action Switch; Series V7

Hover over image to magnify
Prmium Mini Swch,15A,Spdt,Lng
PI_Asset_1369588
Prmium Mini Swch,15A,Spdt,Lng
PI_Asset_1369588

#926211-4 | Pkg Qty: 1

$6.09 pkg | $6.09 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
AC Contact Rating
15 A @ 240 V
Maximum Pretravel
0.115 in.
Actuator Length
1.35 in.
Mfr. Part Number
V7-1C17D8-207
Actuator Type
Lever, Long, Roller
Mounting Dimension
0.41 x 0.87 in. Centers
Amperage
15 A
Number of Circuits
1
Basic Actuator Type
Lever
Operating Force
3.17 oz.
Brand
HONEYWELL
Operating Temperature Range
-4 deg. F to 180 deg. F
Contact Form
SPDT
Over Travel
0.06 in.
Contact Type
SPDT
Package Quantity
1
Current Rating
15A
Release Force
0.31 oz.
DC Contact Rating
0.5 A @ 125 V
Series
V7
Depth
0.4 in.
Shipping Weight
.01 lb.
Differential Travel
0.025 in.
Snap Action Switch Type
Miniature Snap Action Switch
Electrical Connection
Quick Connect
Type
Premium V-Basic
Height
0.63 in.
Type of Actuator
Long Roller Lever
Housing Material
PCT Polyester Thermoplastic
Voltage
277 VAC
Item
Miniature Snap Action Switch
Voltage Rating
250 VAC
Length
1.14 in.
Width
1.14 in.
Lever Actuator Length
1.35 in.
General
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Height - Snap Action Switch
0.63 in
Actuator Type - Snap Action Switch
Lever, Long, Roller
Lever Actuator Length - Snap Action Switch
1.35 in
Basic Actuator Type - Snap Action Switch
Lever
Mounting Dimension - Snap Action Switch
0.87 in Centers
Contact Form- Switches
SPDT
Number of Circuits - Snap Action Switch
1
DC Contact Rating - Snap Action Switch
0.5 A @ 125 V
Operating Temp. Range
-40° to 180°F
Depth - Snap Action Switch
0.4 in
Standards
UL, CSA
Electrical Connection - Snap Action Switch
3/16 in Quick Connect
Width - Snap Action Switch
1.14 in

Product Description

This Microswitch™ miniature switch features quick-connect terminals and a long roller lever actuator. It is designed to operate in temperatures ranging between -40° and 180°F.
