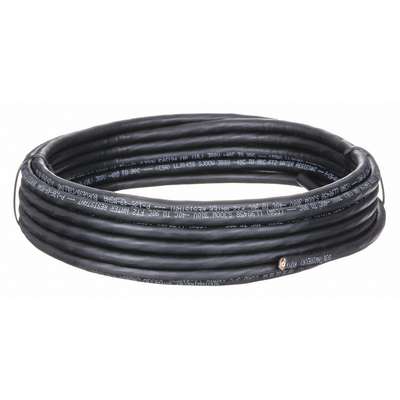

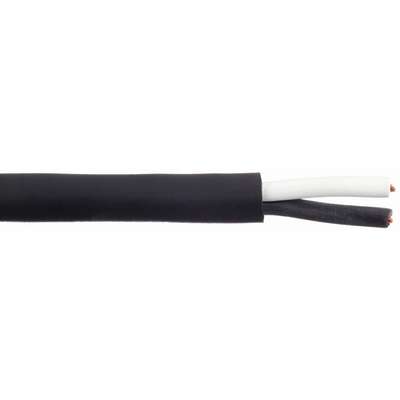

25 ft. Portable Cord; Conductors: 2, Wire Size: 16 AWG, Jacket Type: SJOOW, Jacket Color: Black

Hover over image to magnify
Portable Cord,16/2 Awg,25 Ft.,
PI_Asset_1354498
Portable Cord,16/2 Awg,25 Ft.,
PI_Asset_1354498

#926194-6 | Pkg Qty: 1

$36.34 pkg | $36.34 ea
Item Number 926194-6
Scanner Description Portable Cord,16/2 Awg,25 Ft.,
Inventory Status Drop Ship Item
Weight 1.55 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Mfr. Part Number
E3686
Color Family
Black
Nominal Outside Diameter
0.310 in.
Conductor
Stranded Copper
Number of Conductors
2
Conductor Material
Copper
Pack Quantity
1
Description/Special Features
Indoor/Outdoor Use
Special Features
Resist Oil, Moisture and Abrasion-Resistant
Features
Resist Oil, Moisture and Abrasion-Resistant
Spool Length
25 ft.
Gauge/Conductor
16/2
Spool/Coil Length
25 ft.
Indoor/Outdoor
Indoor/Outdoor
Standards
OSHA and Bureau of Mines (MSHA),UL 62,CSA
Item
Portable Cord
Stranded / Solid
Stranded
Jacket Color
Black
Temperature Range
-40 deg. F to 194 deg. F
Jacket Material
Rubber
Voltage
300 V
Jacket Type
SJOOW
Wire Color
Black, White
Length
25 ft.
Wire Size
16 AWG
Maximum Amps
13
Wire and Cable Item
Portable Cord
Maximum Voltage
300 V
Wire/Cable Size
16 AWG

Product Description

SOOW and SJOOW portable cord are types of heavy-duty service cord with oil-resistant insulation and a flexible thermoset rubber jacket that is oil-, water-, and weather-resistant. The jacket hardens under a direct application of heat. This allows the cord to be unaffected by aging, abrasion, water, sunlight, and ozone, making it extremely durable. SOOW cord is rated for 600V while SJOOW, a junior service cord, is rated for 300V. SOOW is the most popular type of portable cord and is typically used to power industrial applications, such as machines and power tools, and marine applications, such as dockside motors.

Portable cord is flexible, moveable electrical cable that consists of one or more insulated conductors enclosed in a jacket. It is typically used for temporary power connections. Portable cord can be exposed to constant flexing and harsh environmental conditions, including temperature extremes, oil, chemicals, and abrasive materials. There are multiple types of portable cord, as designated by industry standard letter codes that describe various attributes (temperature range, wire size) and ratings (voltage) and help ensure the best cord is selected for an application. Portable cord is commonly used for temporary wiring projects in industrial and commercial facilities, such as supplying power to portable tools, appliances, and equipment, as well as small motors and associated machinery. It does not include plugs on the ends of the cord.

Item Barcode
9261946
  Name Item Description
Grainger Dropship Grainger Dropship 4KA53 Portable Cord,16/2
UNSPSC CODES UNSPSC CODES 26121536
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Portable Cord,16/2
