SAFTCART

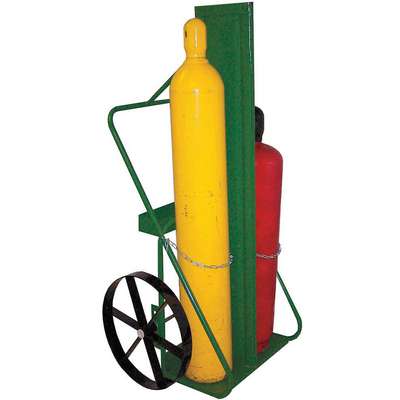

Saftcart Cylinder Truck,Continuous Frame Flow-Back, 400 lb., Cylinder Capacity 2, 50" H X 33"W

Hover over image to magnify
Cylinder Truck,2 Cylinder,400
Cylinder Truck,2 Cylinder,400

#926194 | Pkg Qty: 1

$1,082.37 pkg | $1,082.37 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Base Plate Dimensions
13 x 24 in.
Mfr. Part Number
403-20FW
Brand
SAFTCART
Overall Depth
12-1/2 in.
Color Family
Green
Overall Height
50 in.
Construction
Steel
Overall Width
33 in.
Cylinder Capacity
2
Package Quantity
1
Hand Truck Handle Type
Continuous Frame Flow-Back
Shipping Weight
130 lb.
Hand Trucks Group
Cylinder Hand Trucks
Type
Standard
Item
Cylinder Truck
Wheel Diameter
20 in.
Load Capacity
400 lb.
Wheel Material
Steel
Material
Steel
Wheel Type
Steel
Maximum Tank Diameter Acetylene
9-1/2 in.
Wheel Width
3 in.
Maximum Tank Diameter Oxygen
9-1/2 in.
General
Assembled
Yes
Includes Lever Pushoff
Without Lever Pushoff
Axle Dia.
3/4 in
Includes Lift Ring
Without Lift Ring
Axle-Mounted Wheel Bearings
Plain
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel Dia.
20 in
Max. Tank Dia. Acetylene
9 1/2 in
Axle-Mounted Wheel Type
Flat-Free
Max. Tank Dia. Oxygen
9 1/2 in
Axle-Mounted Wheel Type/Material
Flat-Free Steel
Non-Marking Axle-Mounted Wheels
Yes
Axle-Mounted Wheel Width
2 1/2 in
Nose Plate Depth
13 in
Axle-Mounted Wheel/Tread Material
Steel
Nose Plate Material
Steel
Brake Type
No Caster Brake
Nose Plate Profile
Standard
Caster/Wheel Configuration
(2) Axle-Mounted
Nose Plate Thickness
3/32 in
Caster/Wheel Mounting Location
2-Wheel
Nose Plate Type
Solid Straight
Compatible with Product Type
Welding Cylinders and Torches
Nose Plate Width
24 in
Cylinder Orientation
Side by Side
Nose Plate WxD
13 in x 24 in
Firewall Rating
1-hour
Overall Height - Cylinder Lowered
62 in
Firewall Thickness
1 in
Overall Height - Cylinder Raised
62 in
For Maximum Container Diameter
12 1/2 in
Overall HxWxD
62 in x 34 in x 12 1/2 in
For Maximum Cylinder Diameter
12 1/2 in
Securing Mechanism
Chain
For Surface Type
Concrete, Grass, Wood
Securing Mechanism Height
30 in
Hub Position
Offset
Standards
OSHA 1910.253
Includes
Chain to Secure Cylinder, Firewall, Toolbox
Tool Tray Height
31 in
Includes Firewall
Yes
Tool Tray Width
23 7/8 in
Includes Foot Assist
Without Foot Assist

Product Description

Firewall welding cylinder hand trucks are used to move oxygen and acetylene gas cylinders in welding applications where cylinders may be stored on the trucks for long periods of time (more than 24 hours). They have a steel firewall that creates a barrier between the two cylinders and helps prevent fires or explosions. The firewall also protects the cylinders from damage during transfer and storage.
