DAYTON

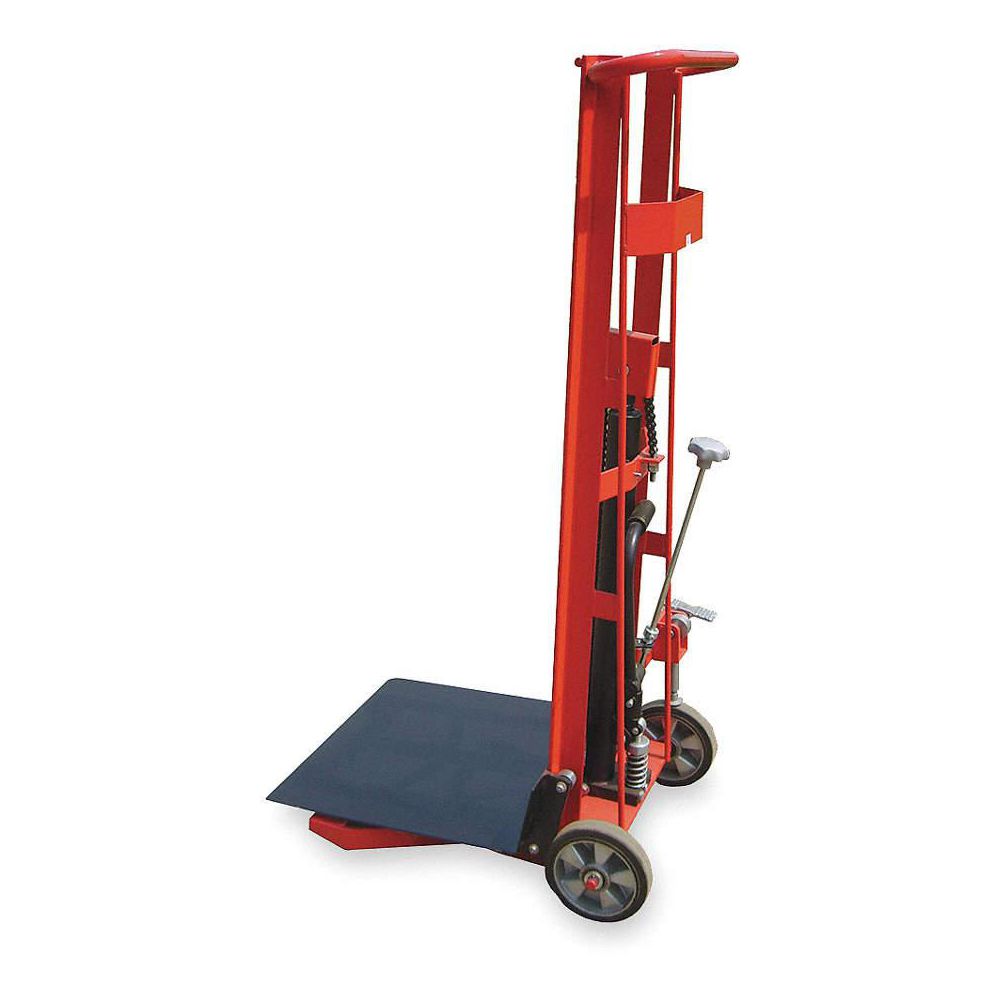

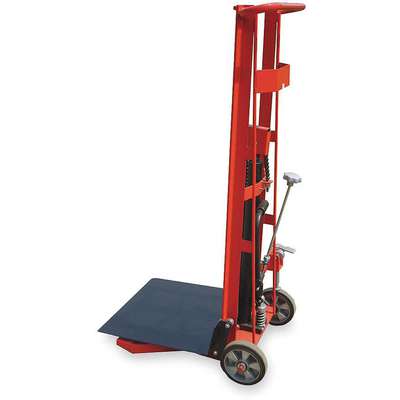

Manual Lift, Manual Push Platform Lift, 750 lb. Load Capacity, Lifting Height Max. 54"

Hover over image to magnify
Pltfrm Lift, 750 Lb. Cap.60-1/
Pltfrm Lift, 750 Lb. Cap.60-1/

#926178-3 | Pkg Qty: 1

$1,140.21 pkg | $1,140.21 ea
This item requires special shipping, additional charges may apply.

Technical Specifications

Base Legs Inside Dimensions
16 in.
Load Capacity
750 lb.
Base Legs Outside Dimensions
22 in.
Load Center
12 in.
Brand
DAYTON
Maximum Lifting Height
54 in.
Caster Wheel Type
(2) Swivel, (2) Rigid
Mfr. Part Number
2MPU7
Frame Material
Steel
Overall Height
60-1/2 in.
Front Wheel Diameter
3-1/2 in.
Overall Length
32 in.
Invertible Forks
No
Overall Width
22-1/2 in.
Item
Platform Lift
Pack Quantity
1
Lift Base Style
Fixed Frame
Platform Width
22 in.
Lift Control
Foot Pump
Powered By
Foot Pump
Lift Mechanism
Hydraulic
Shipping Weight
172 lb.
Lift Mobility
Manual Lift, Manual Push
Type
Manual
Lifting Height Maximum
54 in.
Wheels
2 Rigid, 2 Swivel
Lifting Height Minimum
5-3/4 in.

Product Description

Manual platform lift trucks have their outrigger legs positioned directly underneath their platform. They have a compact footprint and can maneuver in tight spaces such as aisles, loading docks, and store rooms. These platform lift trucks are used for lifting and stacking operations. They are also sometimes used as adjustable-height work tables and for feeding materials into machines. They have a foot pedal or hand crank that activates their lifting mechanism to raise their platform. Manual platform lift trucks are suitable for intermittent use and applications where loads will be moved and lifted short distances.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
