DAYTON

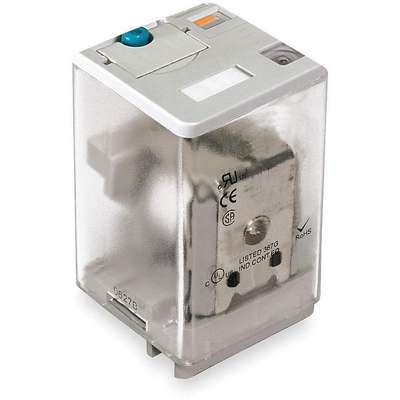

Dayton 24VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Square

Hover over image to magnify

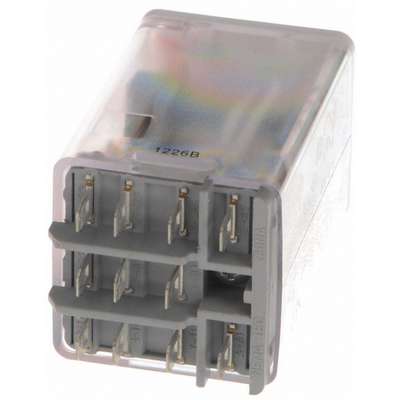

Plug In Relay,11 Pins,Square,
PI_Asset_1363673
Plug In Relay,11 Pins,Square,
PI_Asset_1363673
Dayton 24VAC Coil Volts, General Purpose Relay, 10A @ 277VAC/10A @ 28VDC Contact Rating, Square Video

#926148-5 | Pkg Qty: 1

$32.67 pkg | $32.67 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 277 V
Item
General Purpose Relay
Base Type
Square
Mfr. Part Number
1EJE6
Body Depth
1.4 in.
Mounting
Plug In
Body Height
2.1 in.
Number of Contacts
3
Body Width
1.37 in.
Number of Pins
11
Brand
DAYTON
Number of Poles
3
Coil VA Rating
3
Overall Height
2.59 in.
Coil Volts
24 VAC
Pack Quantity
1
Contact Amp Rating
8
Pins
11
Contact Form
3PDT
Plug-In Relay Style
General Purpose
Contact Material
Silver Alloy
Push To Test
Lockable
Contact Rating
10 A @ 277 VAC/30 VDC
Relay Power Consumption
3.0 VA
DC Contact Rating
10 A @ 28 V
Resistive Contact Amp Rating
16
HP @ 120 V
2022-01-03
Shipping Weight
.21 lb.
HP @ 240 V
2022-01-02
Socket
5X853, 1ERG3
Hz
50/60
Socket Code
C
Inductive Contact Amp Rating
8
Status Indicator
LED and Mechanical Flag
Input Power Consumption
3.0 VA
Type
Plug In, Power
General
AC Contact Rating - Relay
10A @ 277V
HP @ 240V
1/2 hp
Base Type - Plug In Relay
Square
Mounting - Relay
Plug In
Body Depth - Relay
1.4 in
Number of Pins - Relay
11
Body Height - Relay
2.1 in
Overall Height - Relay
2.59 in
Body Width - Relay
1.37 in
Power Consumption - Relay
3 VA
Contact Form - Relay
3PDT
Socket Code - Relay
C
DC Contact Rating - Relay
10A @ 28V
Standards
E40944
HP @ 120V
1/3 hp

Product Description

General Purpose Relay, Coil Volts 24V AC, AC Contact Rating - Relay 10A @ 277V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 11, Contact Form - Relay 3PDT, Mounting - Relay Plug In, Socket Code - Relay C, Power Consumption - Relay 3.0 VA, Contact Material Silver Alloy, Status Indicator LED and Mechanical Flag, Push To Test Lockable
