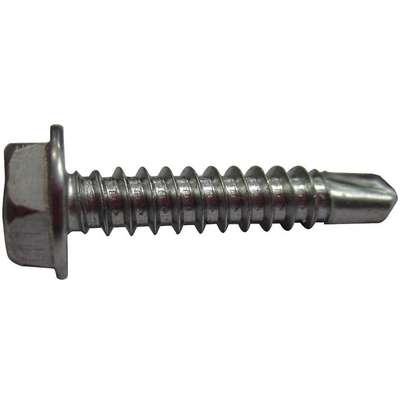

1-1/2" 410 Stainless Steel Self Drilling Screw with Hex Washer Head Type and Plain Finish
Hover over image to magnify
#926135-7 | Pkg Qty: 100
$12.40 pkg | $0.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Stainless Steel
Meets/Exceeds
SAE J78/IFI 113
Brand
APPROVED SUPPLIER
Mfr. Part Number
U31860.016.0150
Drill Point Length
0.211 in.
Package Quantity
100
Drill Point Size
#2
Self-Drilling Screw Drive Type
Hex
Driver Size
1/4 in.
Self-Drilling Screw Head Type
Hex Washer
Finish
Plain
Shipping Weight
.72 lb.
Head Color
Standard
System of Measurement
Fractional
Item
Self Drilling Screw
Thread Size
#8-18
Length Under Head
1-1/2 in.
Type
Self Drilling
Material
410 Stainless Steel
General
Application
For Attaching Variety of Materials to Metal Up to 12 Gauge
Maximum Head Width
0.25 in
Drill Tip Length
7/32 in
Minimum Head Height
0.096 in
Maximum Drilling Thickness
0.068 in
Minimum Head Width
0.244 in
Maximum Head Height
0.11 in
Washer O.D.
0.322 to 0.348 in
Product Description
Self-Drilling Sheet Metal Screws
- Package quantities are exact Meet SAE J78 standard
- 1-pc., 1-side-installation fasteners drill their own holes and form their own internal mating threads. Climacoat finish prevents rust from bleeding into substrate. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
- Self-Drilling Hex Washer Sheet Metal Screws
- Package quantities are exact All meet SAE J78 standard
- 1-pc., 1-side-installation fasteners have a drilling point tip that drills its own hole and forms its own internal mating threads. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Electro Zinc corrosion-resistant finish is applied to No. 36K129 with a process that conforms to ASTM B633 specifications. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
S/S Hex HD Tek Screw 8X1-1/2
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1WU86 | Drilling Screw,#8-18, |
 | UNSPSC CODES | 31161506 | |
 | VMRS (ATA) CODES | 053-007-006 | Drilling Screw,#8-18, |
