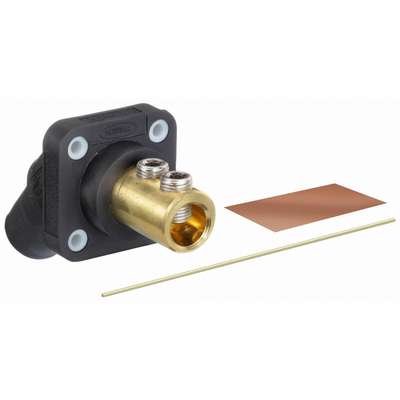

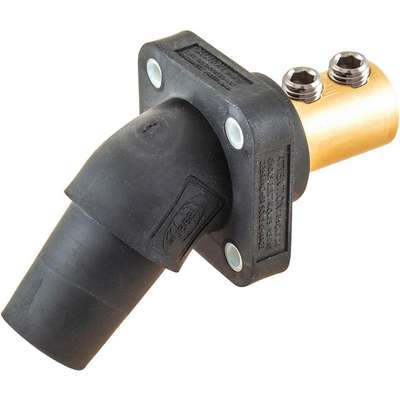

Angled Receptacle, 4X NEMA Rating, 16, 400AC/DC Amps AC/DC, Taper Nose

Hover over image to magnify
Angled Receptacle,Black,Double
PI_Asset_1354633
Angled Receptacle,Black,Double
PI_Asset_1354633

#926121 | Pkg Qty: 1

$69.44 pkg | $69.44 ea
Item Number 926121
Scanner Description Angled Receptacle,Black,Double
Inventory Status Drop Ship Item
Weight 0.87 lb
Brand HUBBELL

Technical Specifications

Amps AC/DC
400AC/DC
Mounting
Screw Mount
Brand
HUBBELL
NEMA Rating
4X
Cable Range
4 to 4/0
Pack Quantity
1
Color Family
Black
Power Terminals Wire Size
#4 to 4/0
Conductor Material
Brass
Series
16
Fits
16 Series Male
Single Pole Device Style
Taper Nose
Item
Angled Receptacle
Standards
UL,CSA
Male/Female
Female
Terminal Connection
Double Set Screw
Material
Thermoplastic Elastomer
Voltage Rating
600VAC/250VDC
Mfr. Part Number
HBLFRABK

Product Description

Angled Receptacle, NEMA Rating 4X, Series 16, Amps AC/DC 400AC/DC, Single Pole Device Style Taper Nose, Cable Range 4 to 4/0, Voltage Rating 600V AC/250V DC, Terminal Connection Double Set Screw, Male/Female Female, Color Black, Material Thermoplastic Elastomer, Conductor Material Brass, Fits 16 Series Male, Mounting Screw Mount, Power Terminals Wire Size #4 to 4/0, Standards UL,CSA

Item Barcode
9261210
  Name Item Description
Grainger Dropship Grainger Dropship 52HF33 Angled Receptacle,
UNSPSC CODES UNSPSC CODES 39121406
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 Angled Receptacle,
