VERMONT AMERICAN

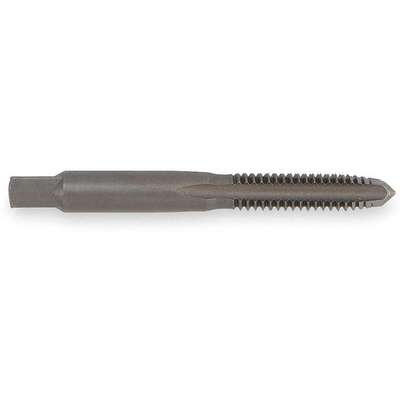

1/2"-13, Tap, Right Hand, Plug, 4 Flutes, High Speed Steel, Uncoated Tap Finish
Hover over image to magnify
#926110-5 | Pkg Qty: 1
$9.17 pkg | $9.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
VERMONT AMERICAN
Shipping Weight
.1 lb.
Cutting Direction
Right
Size
1/2 in.
Cutting Direction
Right Hand
Subgroup | Tap
Straight Flute
Finish
Uncoated
Tap Chamfer
Plug
Flutes
4
Tap Dimension Type
Inch
Item
Tap
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
BPT12F13
Tap Size
1/2 in.
Number of Flutes
4
Tap Style
Straight Flute (Hand)
Number of Pieces
1
Tap Thread Size
1/2 in.-13
Overall Length
3-3/8 in.
Tap Thread Type
UNC
Pack Quantity
1
Thread Direction
Right Hand
Pitch
13
Thread Length
1-21/32 in.
Pitch Diameter Limits
H4
Thread Type
UNC
Shank Diameter
23/64 in.
Type
Plug
General
Application
3 to 5 Threads Chamfered For General Use When Tapping To Bottom Of Hole Is Not Critical
Tap Grouping
Individual
Measurement System
Fractional Inch
Thread Standard
UNC
Shank Dia.
23/64 in
Product Description
This VERMONT AMERICAN fractional plug tap features a 4-flute design that helps ensure easy and fast chip clearance. Tap is ideal for cutting right-hand internal threads and has 3 to 5 threads chamfered for general-purpose applications where tapping to the bottom of a hole is not critical. Drill size is etched on the side of the tap to ease identification.
Item Barcode
Tap,Plug,1/2"-13,Uncoated,4 Flt
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2NWL9 | Tap,Plug,1/ 2"-13, |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 | Tap,Plug,1/ 2"-13, |
