YG-1 TOOL COMPANY

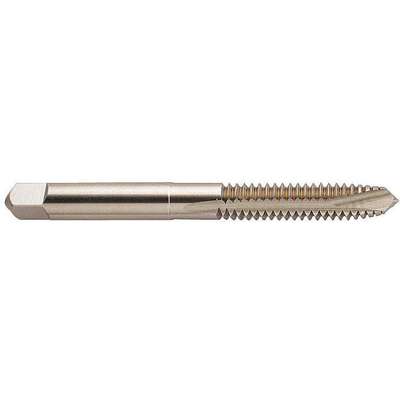

5/8"-11, Tap, Right Hand, Plug, 3 Flutes, Vanadium High Speed Steel, Oxide Tap Finish

Hover over image to magnify
Tap,Plug,5/8"-11,Oxide,3 Flt
Tap,Plug,5/8"-11,Oxide,3 Flt

#926110-4 | Pkg Qty: 1

$32.42 pkg | $32.42 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
YG-1 TOOL COMPANY
Shank Length
2 in. in.
Cutting Direction
Right
Shipping Weight
.2 lb.
Drill Bit Size
17/32 in.
Size
5/8 in.
Finish
Steam Oxide
Spiral Direction
Neutral
Item
Spiral Point Tap
Subgroup | Tap
Spiral Point
List Number
I9
Tap Chamfer
Plug
Material
Vanadium High Speed Steel
Tap Dimension Type
Inch
Mfr. Part Number
I9643
Tap Finish
Black Oxide
Number of Flutes
3
Tap Material
HSSE-V3
Number of Pieces
1
Tap Size
5/8 in.
Overall Length
3-13/16 in.
Tap Style
Spiral Point
Package Quantity
1
Tap Thread Size
5/8 in.-11
Pitch
11
Tap Thread Type
UNC
Primary Material Application
Steel
Thread Direction
Right Hand
Series
I9
Thread Length
1-13/16 in.
Shank Diameter
15/64 in.
Thread Type
UNC
General
55% Thread Drill Size
14.20 mm
Shank Dia.
15/64 in
65% Thread Drill Size
13.90 mm
Shank Type - Machining
Straight
75% Thread Drill Size
13.60 mm
Standards
ANSI
Class of Fit
2B
Tap Grouping
Individual
Extended Neck
Yes
Thread Limit
H3
Measurement System
Fractional Inch
Thread Limit / Class of Fit
H3 / 2B
Primary Material Application ISO Code
P
Thread Standard
UNF
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Threads per Inch
11
Secondary Material Application ISO Code
K, M, N, P

Product Description

These taps have a unified thread standard. UN coarse (UNC) taps have fewer threads per inch than UN fine (UNF) taps. Compared to UNF taps, UNC taps perform better in threading applications on brittle materials and are less likely to cross thread. Coarse threads can also withstand more physical abuse than fine threads. UNF taps have more threads per inch than UNC taps. Compared to UNC taps, UNF taps perform better in threading applications on thin-walled workpieces and hard materials. Fine threads provide more tensile strength and shear strength than coarse threads. The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals.
