MILLER ELECTRIC
Miller Electric Stick Welder, Thunderbolt Series, Input Voltage: 240V
Hover over image to magnify
#926102-8 | Pkg Qty: 1
$1,270.95 pkg | $1,270.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
25 to 210 A
OCV
85
Brand
MILLER ELECTRIC
Overall Depth
13.38 in.
Cord Length
6-1/2 ft.
Overall Height
10-1/2 in.
Duty Cycle
0.2 %
Overall Width
7-1/4 in.
Duty Cycle
0.2
Package Quantity
1
Hz
50/60 Hz
Phase
Single-Phase
Input
52
Rated Output
AC: 210 A/240V/20%
Input Voltage
220/230/240 VAC
Series
Thunderbolt 210
Item
Stick Welder
Shipping Weight
22.5 lb.
Mfr. Part Number
907722
Welding Processes
Stick Welding (SMAW)
General
Cable Connection Type
Dinse-Style
Overall Height (In.)
10 1/2 in
Effective Input Current
43.4 A @ 240V AC (Single-Phase)
Overall Width (In.)
7 1/8 in
Electrode Cable Length
10 ft
Rated Output at Duty Cycle (Stick)
210 A @ 20%
Features
High Weld Output, Hot Start Technology
Stick Welding Maximum Output Current
210 A
Includes
10 ft. No. 4 Electrode Cable with Heavy-Duty Electrode Holder, 10 ft. Work Cable with Clamp
Stick Welding Minimum Output Current
25 A
Input (Amps)
52
Stick Welding Output @ Duty Cycle
210 A @ 43.4 V, 20%
Input Voltage (Nominal)
240V
Welder Kit Type
Stick Package
Kit Includes
Stick Electrode Holder with Cable, Work Cable with Clamp
Welder Type
Stick Package
Max. Amperage Range (Stick)
150 A — 300 A
Welding Amp Range High
25 to 210
Open Circuit Voltage
85 V DC
Welding Amp Range Low
25 to 210
Output Amps @100% Duty Cycle
90 A
Welding Mode
CC
Output Amps @20% Duty Cycle
210A
Welding Range (Amps DC)
25-210
Output Range (Amps)
25 to 210
Work Cable Length
10 ft
Overall Depth (In.)
13 3/8 in
Product Description

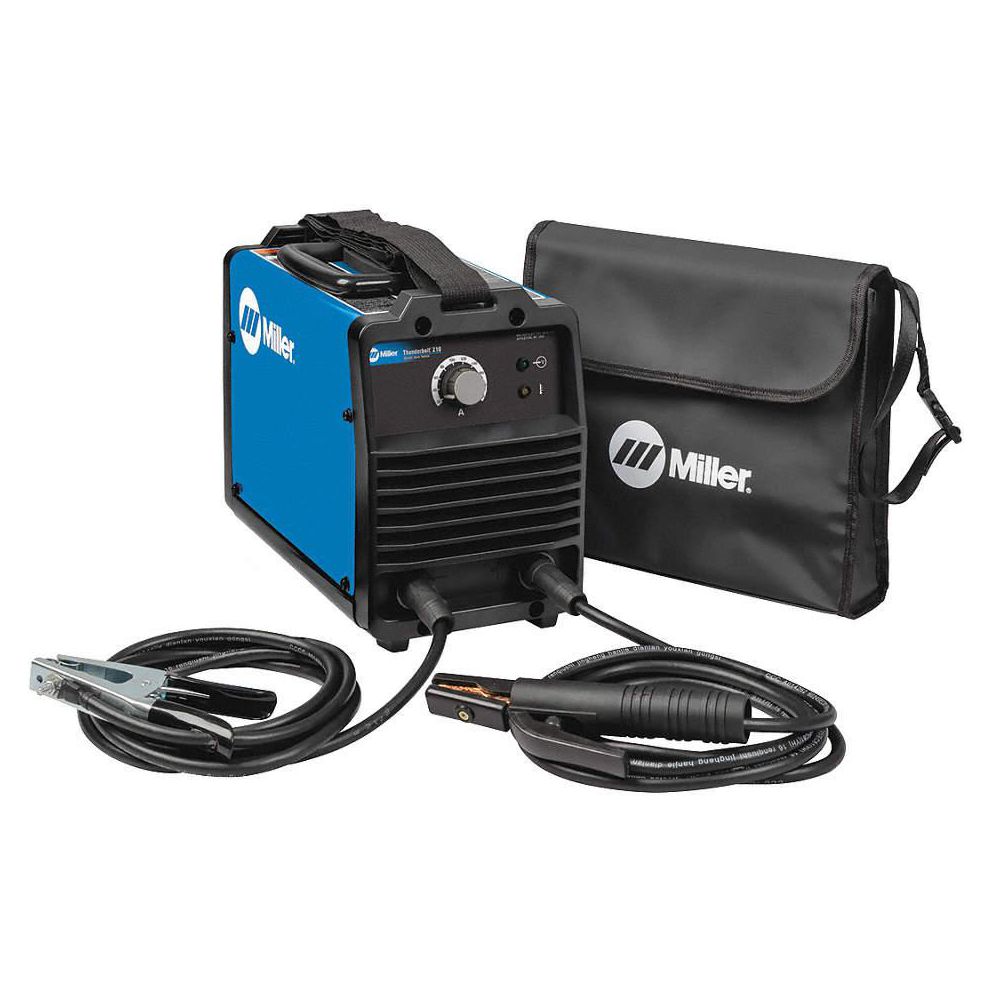

Weighing in at only 15 lb., the lightweight Miller Thunderbolt Stick Welder is nearly 100 lb. less than previous versions, to provide outstanding portability. It features Hot Start™ technology for quick, reliable starting, and includes electrode cable, electrode holder, work cable with clamp, and power cord.
