IRWIN HANSON

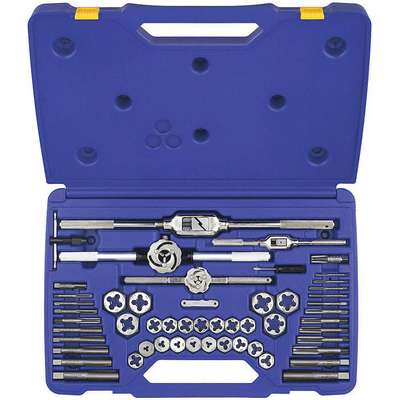

Tap and Die Set: 53 Pieces, 1/8"-27 Min. Tap Thread Size, 3/4"-16 Max. Tap Thread Size
Hover over image to magnify
#926101-6 | Pkg Qty: 1
$474.12 pkg | $474.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
IRWIN HANSON
Shipping Weight
12.2 lb.
Die Material
High Speed Steel
Sizes Included
#6-32, #8-32, #10-24, #10-32, #12-24, 1/4 in.-20, 1/4 in.-28, 5/16 in.-18, 5/16 in.-24, 3/8 in.-16, 3/8 in.-24, 7/16 in.-14, 7/16 in.-20, 1/2 in.-13, 1/2 in.-20, 9/16 in.-12, 9/16 in.-18, 5/8 in.-11, 5/8 in.-18, 3/4 in.-10, 3/4 in.-16, 1/8 in.-27 NPT, 1/4 in.-18 NPT
Die Shape
Hex
Spiral Direction
Neutral
Dimension Type
Fractional, Machine
Tap Chamfer
Plug
Item
Tap and Die Set
Tap Dimension Type
Inch, Machine
Left/Right Hand
Right Hand
Tap Material
High Speed Steel
Material
Carbon Steel
Tap Wrench Number
12473, 12498, 311088
Mfr. Part Number
24640
Thread Direction
Right Hand
Number of Pieces
53
Thread Type
NC, NF, NPT
Package Quantity
1
Type
Machine Screw/Fractional
SAE or Metric
SAE
General
Case Type
Plastic
Measurement System
Fractional Inch, Wire
Class of Fit
2B
Min. Bore Dia.
1/8 in - 27 NPT
Die Hex Size
1 in, 1 1/4 in
Min. Tap Thread Size
1/8"-27
Die Material Grade
Carbon Steel
Number Of Taps
23
Die Series
Hanson
Number of Dies in Set
23
Die Type
1 in and 1-7/16 in Hex
Tap Series
Hanson
Includes
Adjustable/Nonadjustable T-Handle Tap Wrench, Adjustable and Plain Die Stock, 2-in-1 Tap Wrench, 18 Leaf Standard Thread Gauge, Extra Plastic Case
Tap Type
Straight Flute
Material - Machining
High Speed Steel
Thread Standard
NC, NF, NPT
Max. Die Thread Size
3/4"-16
Threads per Inch
10, 11, 12, 13, 14, 16, 18, 20, 24, 27, 28, 32
Max. Tap Thread Size
3/4"-16
Product Description
Taps and Dies
- Designed to ensure that bolts fit tightly and anchor securely. Plug taps have 3 to 5 chamfered threads and are for general purpose applications. 4-flute design ensures fast, easy chip clearance. High carbon steel hexagon dies are ideal for cutting right-hand external threads. Hex head shape is designed for use in die stock and adjustable wrenches.
Item Barcode
Tap And Die Set,53 Pc,Raw Steel
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 9K174 | Tap and Die Set,53 pc, |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 | Tap and Die Set,53 pc, |
