DAYTON

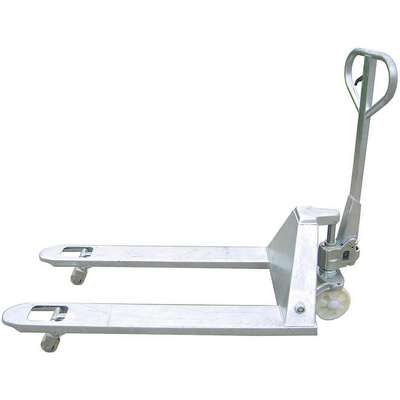

Dayton Standard Corrosion Resistant Manual Pallet Jack, 5500 lb. Load Capacity, Fork Size: 6-1/4"W x 48"L,

Hover over image to magnify
Hand Pallet Jack,Load Cap 5500
Hand Pallet Jack,Load Cap 5500

#926076-5 | Pkg Qty: 1

$1,018.86 pkg | $1,018.86 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
DAYTON
Lifting Height Minimum
3 in.
Color Family
Silver
Load Capacity
5500 lb.
Construction
11 Gauge Steel
Mfr. Part Number
24L321
Fork Height Lowered
3 in.
Overall Height
48 in.
Fork Height Raised
7-1/2 in.
Overall Length
64 in.
Fork Length
48 in.
Overall Width
27 in.
Fork Width
6-1/4 in.
Package Quantity
1
Handle
Steel
Shipping Weight
125 lb.
Item
Pallet Jack
Steering Arc
200 deg.
Key Pallet Jack Feature
Corrosion Resistant
Width Across Forks
27 in.
Lifting Height Maximum
7-1/2 in.
Width Between Forks
14-1/2 in.
General
Assembled
Yes
Main Wheel Size
7 in
For Pallet Type
Open/Closed
Overall LxWxH
64 in x 27 in x 48 in
For Surface Type
Concrete
Pallet Jack Operation
Manual
Fork LxW
48 in x 6 1/4 in
Pallet Jack Style
Standard
Fork Style
Standard
Roller Dia.
3 in
Fork Type
Fixed
Rollers
Nylon
Lifting Height Max.
7-1/2"
Steer Wheel Diameter
7 in
Lifting Height Min.
3"
Steer Wheel/Tread Material
Nylon
Load Wheel Bearing Type
Ball Bearing
Strokes to Maximum Lift Height
16
Load Wheel Diameter
3 in
Wheel Base
49 in
Load Wheel/Tread Material
Nylon

Product Description

This corrosion-resistant antirust truck has a hot-dipped galvanized steel frame with stainless steel parts. It's ideal for use in cold storage environments requiring cleanliness. Safety features include an overload bypass valve and a pressure compensated flow valve for controlled lowering. A hand-actuated control lever for selecting Raise, Neutral, and Lower positions is included.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
