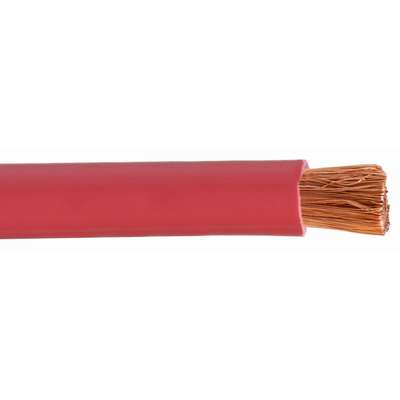

Westward 100 ft. Neoprene Welding Cable with 1 AWG Wire Size and Max. Amps of 119, Red

Hover over image to magnify
Welding Cable,1 Awg,100 Ft.,
PI_Asset_1353429
Welding Cable,1 Awg,100 Ft.,
PI_Asset_1353429

#926073 | Pkg Qty: 1

$408.93 pkg | $408.93 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
WESTWARD
Item
Welding Cable
Color Family
Red
Length
100 ft.
Conductor Material
Copper
Maximum Amps
119
Conductor Size
1 AWG
Mfr. Part Number
19YE32
Gauge
1
Package Quantity
1
Insulation Color
Red
Shipping Weight
30.79 lb.
Insulation Type
Rubber
Wire Gauge
1 AWG
General
Application
Welding Machines and Accessories
Max. Temp.
150°F
For Use With
Welding Machines and Accessories
Max. Voltage
600
Insulating Material
Neoprene Rubber
Sub-Category
Welding Cable
Insulation Material - Wire and Cable
Neoprene
Wire Size - Wire and Cable
1 AWG
Length - Wire and Cable
100 ft.

Product Description

Welding cable is a flexible, durable electrical cable that supplies power to the secondary circuit of electric welders, which controls the electrode that releases the charge needed for the welding process. Also called an electrode cable, it is commonly used in manufacturing environments to power resistance welding and arc welding equipment, or to replace or repair damaged cable. It has a single, finely stranded conductor wrapped in a nonconductive rubber jacket that is resistant to heat, burns, sparks, and abrasions. The fine copper strands give welding cable more flexibility than other types of electrical wire, and the insulating jacket is designed to hold up to repeated movement over rough surfaces.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9260730
Welding Cable,1 Awg,100 Ft.,
 NameItemDescription
Grainger DropshipGrainger Dropship19YE32Welding Cable,1 AWG,
UNSPSC CODESUNSPSC CODES26121629
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Welding Cable,1 AWG,
