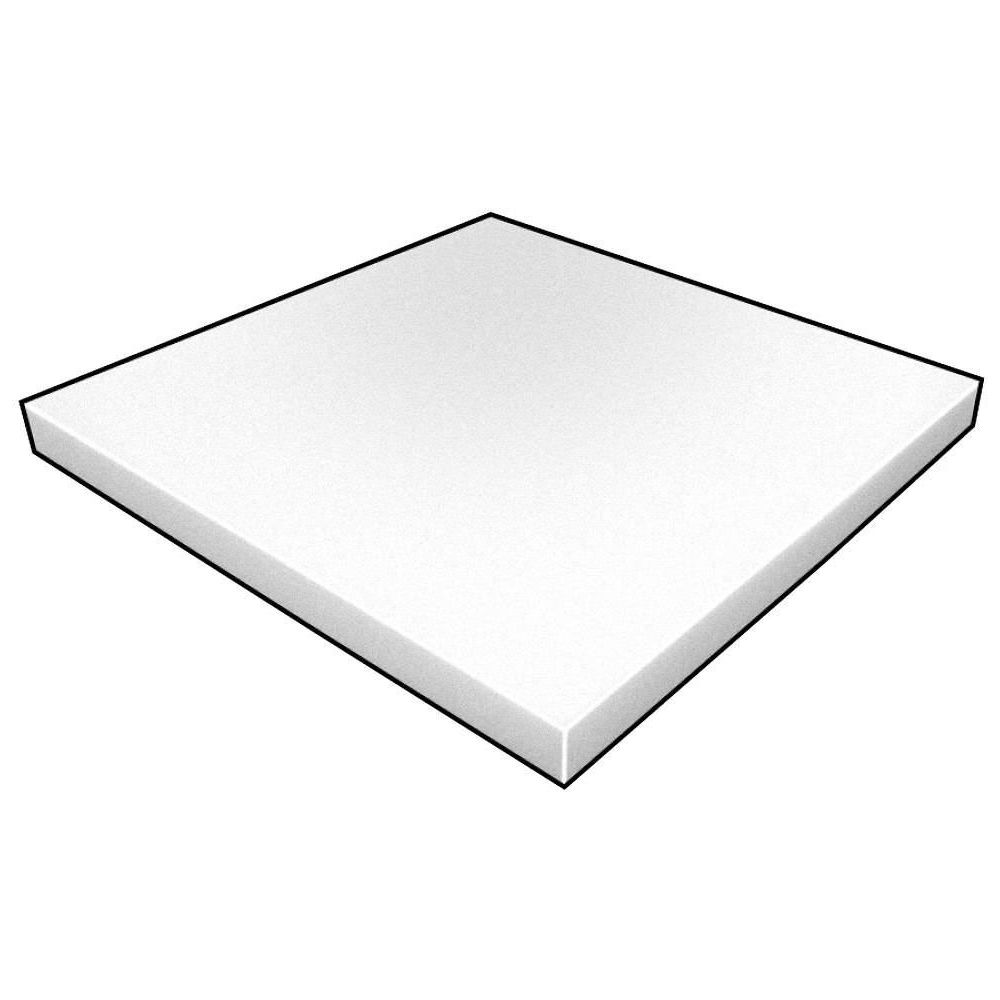

Polyethylene Sheet: Std, 24 in x 24 in, 1 in Thick, White, Closed Cell, 1-Sided Adhesive, Smooth

Hover over image to magnify
Foam Sheet,Crosslink,Poly,
Foam Sheet,Crosslink,Poly,

#926022-3 | Pkg Qty: 1

$75.53 pkg | $75.53 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Backing
Adhesive
Mfr. Part Number
ZUSA-XPE-70
Brand
APPROVED SUPPLIER
Pack Quantity
1
Color Family
White
Shipping Weight
1.12 lb.
Finish
Coarse Cell
Tensile Strength
32 psi
Item
Foam Sheet
Thickness
1 in.
Length
24 in.
Width
24 in.
Material
Polyethylene
General
Abrasion Resistance
Excellent
Minimum Temperature
-40 °F
Adhesive Type
Acrylic
Nominal Size (WxL)
24 in x 24 in
Cell Type
Closed Cell
Number of Adhesive Sides
1
Chemical Resistance
Good
Oil Resistance
Good
Compression Set
12 %
Shape
Sheet
Density
2 lb/cu ft
Standards
FMVSS 302
Firmness
Medium (9 to 13 psi)
Stretch Limit
225%
Firmness @ 25% Deflection
9 psi
Temp. Range (F)
-40° to 225° F
Firmness @ 25% Deflection (PSI)
9
Temperature Range
-40 °F to 225 °F
Flexibility
Poor
Texture
Smooth
Foam Adhesive
1 – Acrylic
Thickness Tolerance
+/-0.063 in
Foam Shape
Sheet
Type
Crosslink Foam
Grade
Standard
Water Resistance
Good
Length Tolerance
+/-1.00 in
Weather Resistance
Good
Maximum Temperature
225 °F
Width Tolerance
+/-1.000 in

Product Description

Foam Sheets

  • Thickness, width, and length tolerance: ±0.250"
