WALTER VALENITE

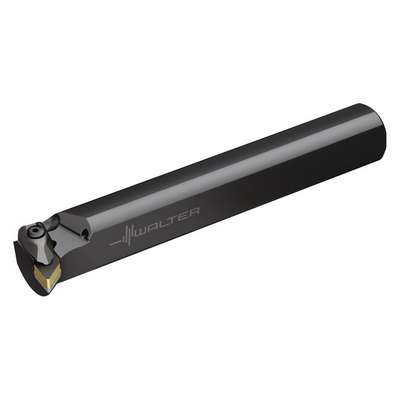

Indexable Boring Bar, Insert Shape 55 Diamond, Overall Length 12 in
Hover over image to magnify
#926009-8 | Pkg Qty: 1
$376.62 pkg | $376.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
A16T-DDUNL4
Mfr. Part Number
A16T-DDUNL4
ANSI Number
A16T-DDUNL4
Mounting Style
Top and Hole Clamping
Brand
WALTER VALENITE
Overall Length
12 in.
Cutting Direction
Left
Pack Quantity
1
Cutting Direction
Left Hand
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Steel, Titanium
Cutting Edge Type
-6
Rake
Negative
Head Material
Steel
Shank Material
High Speed Steel
Insert Shape
55 Diamond
Shipping Weight
2.39 lb.
Item
Indexable Boring Bar
Style
93 Boring and Facing
Lead Angle
93
Type
Coolant Thru
Left/Right Hand
Left
General
Approach Angle
93 Degrees
Max. Bore Depth
4 in
Center to Cutting Tip
3/4 in
Min. Bore Dia.
1-1/2 in
Compatible Hardware
AP304-DN15 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Number of Inserts
1
Cutting Application
Facing, Interrupted Cuts, Profiling, Turning
Primary Material Application ISO Code
H, K, S
For Use With
DN43, DN1504 Series
Secondary Material Application
Stainless Steel
Includes
AP304-DN15 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin
Secondary Material Application ISO Code
M
Insert Clearance Angle
0 Degrees
Shank Dia.
1 in
Insert Holding Type
Clamp
Side Cutting Edge Angle
-6 Degrees
Product Description
Indexable Boring Bar, Insert Shape 55 Degrees Diamond, Overall Length 12 in, A16T-DDUNL4, 93 Degrees , 3/4 in, AP304-DN15 Shim, FS1461 Screw, FS1465 Torx Key, FS1470 Pressure Spring, FS1473 Clamp Screw, PK241 Clamp, RS117 Pin, Coolant Through, Facing, Interrupted Cuts, Profiling, Turning, Left Hand
Item Barcode
Indexable Boring Bar,Top And
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 30EM67 | Indexable Boring Bar, |
 | UNSPSC CODES | 23241601 | |
 | VMRS (ATA) CODES | 053-006-009 | Indexable Boring Bar, |
