- Shipping Weight 0.35 lbs.

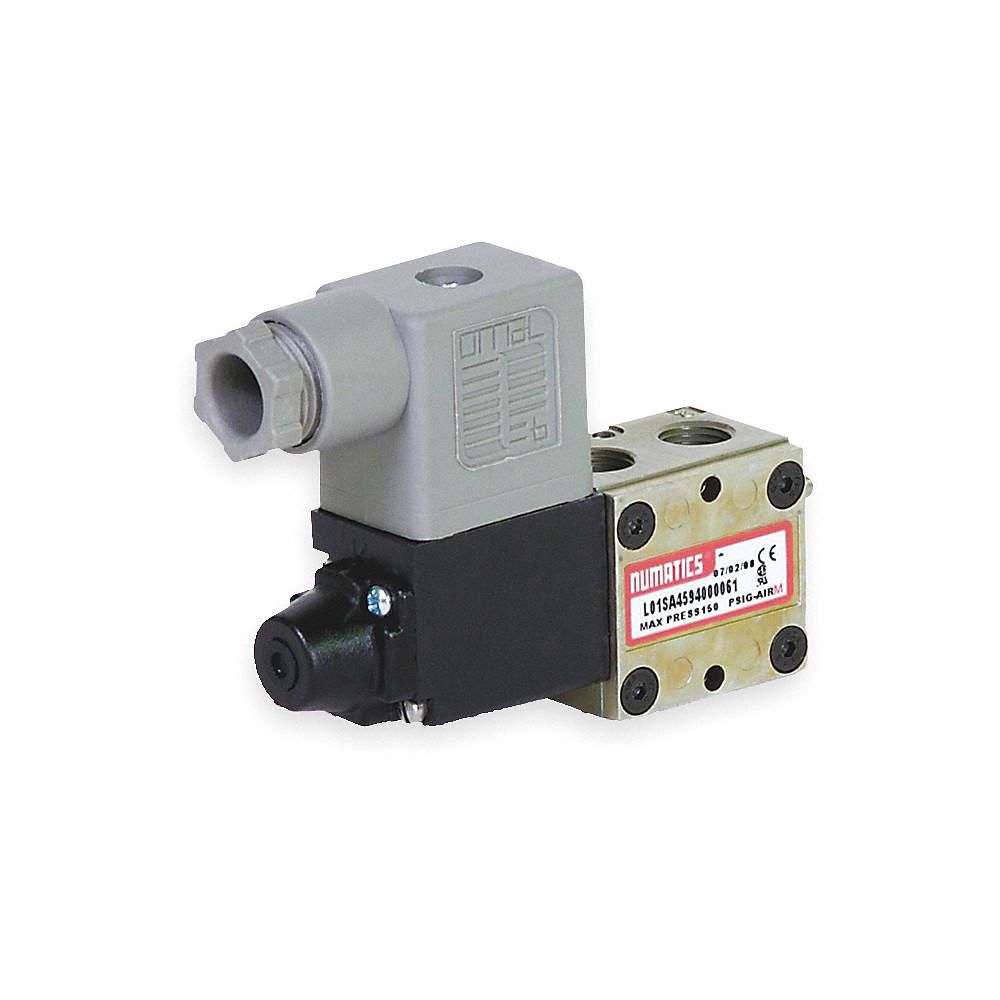

- Item Solenoid Air Control Valve
- Valve Ways and Positions 4-Way/2-Position
- Voltage 120VAC
- Valve Actuator / Return Solenoid / Spring
- Pipe Size 1/8"
- Max. CFM - Valves 9.00
- Operational Pressure Range 0 to 150 psi
- NEMA Classification NEMA 4
- Valve Vacuum Range 0 to 28" Hg
- Body Style Body Ported
- Pilot Port Size 1/8" NPT
- Coefficient of Volume 0.2
- Electrical Connections DIN AC Plug-In Solenoid
- Shifting Technology Spool & Sleeve
- Power Consumption 4.1W
- Ambient Temp. Range -10 Degrees to 115 Degrees F
- Override Non-Locking Flush
- Overall Height 2-5/16"
- Overall Length 3-1/8"
- Overall Width 7/8"
- Standards CE, CSA, UL
- Pneumatic Valves Product Group Solenoid Air Control Valve
|VMRS (ATA) CODES||053-006-009||Solenoid Air Control,1/8",|
